Kingsport Lite Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Ultra-Lite Floor Plans

Gulf Stream Kingsport Lite 20RBS
20RBS | Overall Weight: 4,360 lbs.

Gulf Stream Kingsport Lite 22RSD
22RSD | Overall Weight: 4,170 lbs.

Gulf Stream Kingsport Lite 236RL
236RL | Overall Weight: 5,140 lbs.

Gulf Stream Kingsport Lite 228SB
228SB | Overall Weight: 4430 LBS lbs.

Gulf Stream Kingsport Lite 238RK
238RK | Overall Weight: 4,815 lbs.

Gulf Stream Kingsport Lite 240RK
240RK | Overall Weight: 5,250 LBS lbs.

Gulf Stream Kingsport Lite 241RB
241RB | Overall Weight: 4,031 lbs.

Gulf Stream Kingsport Lite 248BH
248BH | Overall Weight: 3,899 lbs.

Gulf Stream Kingsport Lite 24RLS
24RLS | Overall Weight: 5,050 lbs.

Gulf Stream Kingsport Lite 26BHG
26BHG | Overall Weight: 4,930 lbs.

Gulf Stream Kingsport Lite 251RE
251RE | Overall Weight: 5,990 lbs.

Gulf Stream Kingsport Lite 268BH
268BH | Overall Weight: 5,177 lbs.

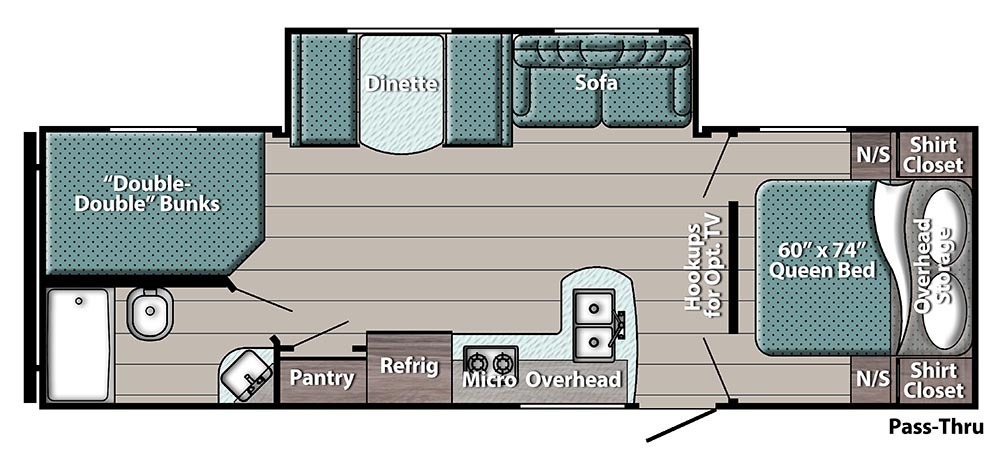

Gulf Stream Kingsport Lite 269BH
269BH | Overall Weight: 5,460 lbs.

Gulf Stream Kingsport Lite 275FBG
275FBG | Overall Weight: 5,100 lbs.

Gulf Stream Kingsport Lite 274QB
274QB | Overall Weight: 6,230 lbs.

Gulf Stream Kingsport Lite 279BH
279BH | Overall Weight: 6,210 lbs.

Gulf Stream Kingsport Lite 292RBH
292RBH | Overall Weight: 6320 LBS lbs.

Super Lite Floor Plans

Gulf Stream Kingsport Lite 14RE
14RE | Overall Weight: 2,780 lbs.

Gulf Stream Kingsport Lite 134RD
134RD | Overall Weight: 2,630 lbs.

Gulf Stream Kingsport Lite 134BH
134BH | Overall Weight: 2,630 lbs.

Gulf Stream Kingsport Lite 177BH
177BH | Overall Weight: 2,810 lbs.

Gulf Stream Kingsport Lite 178RB
178RB | Overall Weight: 2,920 lbs.

Gulf Stream Kingsport Lite 189DD
189DD | Overall Weight: 2,996 lbs.

Gulf Stream Kingsport Lite 199DD
199DD | Overall Weight: 3,100 lbs.

Gulf Stream Kingsport Lite 197BH
197BH | Overall Weight: 3,663 lbs.

Gulf Stream Kingsport Lite 199RK
199RK | Overall Weight: 3,520 lbs.

Gulf Stream Kingsport Lite 19RD
19RD | Overall Weight: 3,552 lbs.

Gulf Stream Kingsport Lite 192DS
192DS | Overall Weight: 3,940 lbs.

Ultra-Lite Floor Plans

Model TypeGulf Stream Kingsport Lite 20RBS
20RBS		Gulf Stream Kingsport Lite 22RSD
22RSD		Gulf Stream Kingsport Lite 236RL
236RL		Gulf Stream Kingsport Lite 228SB
228SB		Gulf Stream Kingsport Lite 238RK
238RK
Key Specifications
Length22'11"25'8"28'1"23'4"28'6"
Width8'8'8'8'8'
Exterior Height11'2"10'9"11'3"10'6"11'1"
Interior Height6'8"6'8"6'8"80'6'8"
Additional Specs
Dry Weight4,3604,1705,1404430 LBS4,815
Hitch Weight400490930530LBS640
Net Carrying Capacity3,0273,3202,7901300 LBS2,865
Fresh Water3635233523
Grey Tank2934343468
Black Tank2933343434
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water HeaterTanklessTanklessTanklessTanklessTankless
LP Tank2 x 20 lbs2 x 20 lbs2 x 20 lbs1 EA @ 20 LBS2 x 20 lbs
Model TypeGulf Stream Kingsport Lite 240RK
240RK		Gulf Stream Kingsport Lite 241RB
241RB		Gulf Stream Kingsport Lite 248BH
248BH		Gulf Stream Kingsport Lite 24RLS
24RLS		Gulf Stream Kingsport Lite 26BHG
26BHG
Key Specifications
Length26'3"27'4"26'7"28'10"30'0"
Width8"8'8'8'8'
Exterior Height11'1"9'10"10'4"11'1"10'5"
Interior Height80"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight5,250 LBS4,0313,8995,0504,930
Hitch Weight650 LBS478500580590
Net Carrying Capacity2,400 LBS3,4873,6014,3302,660
Fresh Water3530233535
Grey Tank3436363333
Black Tank3436363334
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU25,000 BTU
Water HeaterTanklessTanklessTanklessTanklessTankless
LP Tank2 Ea @ 20 LBS2 x 20 lbs2 x 20 lbs2 x 20 lbs2 x 20 lbs
Model TypeGulf Stream Kingsport Lite 251RE
251RE		Gulf Stream Kingsport Lite 268BH
268BH		Gulf Stream Kingsport Lite 269BH
269BH		Gulf Stream Kingsport Lite 275FBG
275FBG		Gulf Stream Kingsport Lite 274QB
274QB
Key Specifications
Length30'29'6"29'11"30'0"32'6"
Width8'8'8'8'8'
Exterior Height11'1"11'1"11'1"10'5"11'1"
Interior Height80"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight5,9905,1775,4605,1006,230
Hitch Weight550660670710840
Net Carrying Capacity1,5602,4832,2102,6101,610
Fresh Water36 GAL23233523
Grey Tank68 GAL33333333
Black Tank34 GAL34343333
Furnace25K BTU20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water HeaterTANKLESSTanklessTanklessTanklessTankless
LP Tank2 EA @ 20 LBS2 x 20 lbs2 x 20 lbs2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Kingsport Lite 279BH
279BH		Gulf Stream Kingsport Lite 292RBH
292RBH
Key Specifications
Length32'6"33'11"
Width8'8'
Exterior Height11'1"11'1"
Interior Height6'8"80'
Additional Specs
Dry Weight6,2106320 LBS
Hitch Weight810920 LBS
Net Carrying Capacity1,6001600 LBS
Fresh Water2335 GAL
Grey Tank3333 GAL
Black Tank3334 GAL
Furnace20,000 BTU19K BTU
Water HeaterTanklessTANKLESS
LP Tank2 x 20 lbs2 Ea @ 20 LBS

Super Lite Floor Plans

Model TypeGulf Stream Kingsport Lite 14RE
14RE		Gulf Stream Kingsport Lite 134RD
134RD		Gulf Stream Kingsport Lite 134BH
134BH		Gulf Stream Kingsport Lite 177BH
177BH		Gulf Stream Kingsport Lite 178RB
178RB
Key Specifications
Length15'10"16'16'20'11"20'11"
Width7'6"90'90'8'8'
Exterior Height10'3"10'3"10'3"10'4"10'4"
Interior Height6'8"80'80'6'8"6'8"
Additional Specs
Dry Weight2,7802,6302,6302,8102,920
Hitch Weight300400400330360
Net Carrying Capacity1,0201,2701,2701,0201,080
Fresh Water2335352323
Grey Tank3634343636
Black Tank3633333636
Furnace20,000 BTU20K BTU20K BTUElec. HeatElec. Heat
Water HeaterTanklessTANKLESSTANKLESSTanklessTankless
LP Tank20 lbs.1 EA @ 20 LBS1 EA @ 20 LBS20 lbs.20 lbs.
Model TypeGulf Stream Kingsport Lite 189DD
189DD		Gulf Stream Kingsport Lite 199DD
199DD		Gulf Stream Kingsport Lite 197BH
197BH		Gulf Stream Kingsport Lite 199RK
199RK		Gulf Stream Kingsport Lite 19RD
19RD
Key Specifications
Length20'11"20'11"22'2"22'2"23'1"
Width8'8'8'8'8'
Exterior Height10'4"10'4"10'8"10'8"10'8"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight2,9963,1003,6633,5203,552
Hitch Weight350360638490390
Net Carrying Capacity8547601,3951,3701,238
Fresh Water2323232323
Grey Tank3436363636
Black Tank3436363636
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water HeaterTanklessTanklessTanklessTanklessTankless
LP Tank20 lbs.20 lbs.20 lbs.20 lbs.20 lbs.
Model TypeGulf Stream Kingsport Lite 192DS
192DS
Key Specifications
Length22'3"
Width8'
Exterior Height10'6"
Interior Height6'8"
Additional Specs
Dry Weight3,940
Hitch Weight400
Net Carrying Capacity860
Fresh Water23
Grey Tank34
Black Tank34
Furnace20,000 BTU
Water HeaterTankless
LP Tank20 lbs
