Northern Express Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Luxury Series Floor Plans

Gulf Stream Northern Express 220RB
220RB | Overall Weight: 5,620 lbs.

Gulf Stream Northern Express 246BH
246BH | Overall Weight: 5,903 lbs.

Gulf Stream Northern Express 258RB
258RB | Overall Weight: 5,957 lbs.

Gulf Stream Northern Express 282BH
282BH | Overall Weight: 6,251 lbs.

Gulf Stream Northern Express 284QB
284QB | Overall Weight: 6,737 lbs.

Gulf Stream Northern Express 290RL
290RL | Overall Weight: 7,117 lbs.

Gulf Stream Northern Express 333BH
333BH | Overall Weight: 7,937 lbs.

SVT Series Floor Plans

Gulf Stream Northern Express 18RBD
18RBD | Overall Weight: 3,160 lbs.

Gulf Stream Northern Express 19FMB
19FMB | Overall Weight: 3,459 lbs.

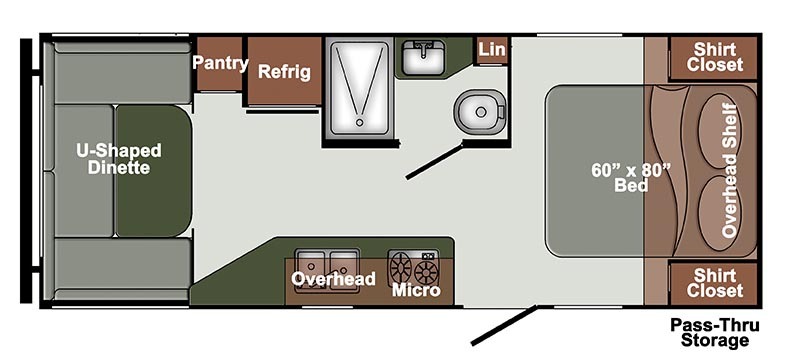

Gulf Stream Northern Express 22UDL
22UDL | Overall Weight: 3,775 lbs.

Gulf Stream Northern Express 21MBS
21MBS | Overall Weight: 3,615 lbs.

Gulf Stream Northern Express 21MBD
21MBD | Overall Weight: 3,675 lbs.

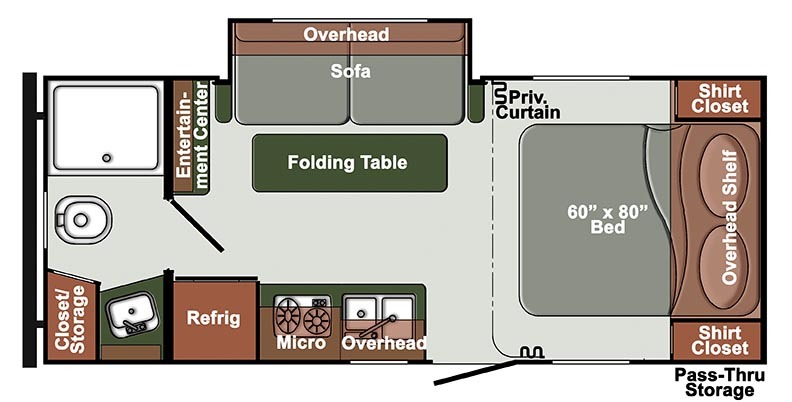

Gulf Stream Northern Express 21QBS
21QBS | Overall Weight: 3,567 lbs.

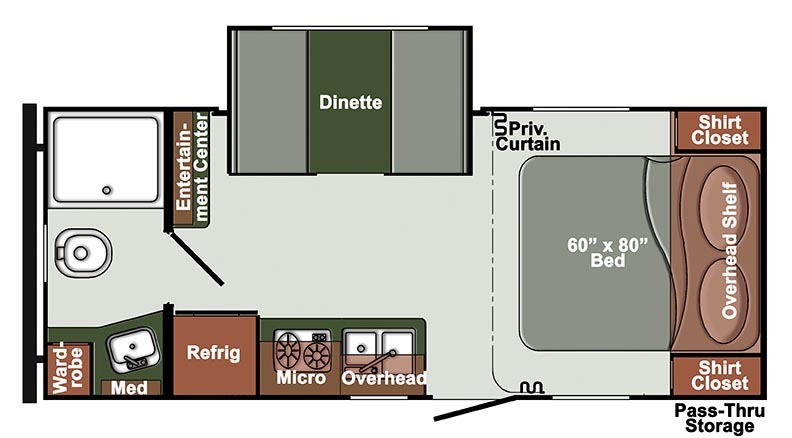

Gulf Stream Northern Express 21QBD
21QBD | Overall Weight: 3,576 lbs.

Gulf Stream Northern Express 21TBD
21TBD | Overall Weight: 3,655 lbs.

Signature Series Floor Plans

Gulf Stream Northern Express 24RBS
24RBS | Overall Weight: 4,700 lbs.

Gulf Stream Northern Express 25BHS
25BHS | Overall Weight: 5,040 lbs.

Gulf Stream Northern Express 25RKS
25RKS | Overall Weight: TBA lbs.

Gulf Stream Northern Express 25RLD
25RLD | Overall Weight: 4,911 lbs.

Gulf Stream Northern Express 28CRB
28CRB | Overall Weight: 6,120 lbs.

Gulf Stream Northern Express 28BBS
28BBS | Overall Weight: 5,820 lbs.

Luxury Series Floor Plans

Model TypeGulf Stream Northern Express 220RB
220RB		Gulf Stream Northern Express 246BH
246BH		Gulf Stream Northern Express 258RB
258RB		Gulf Stream Northern Express 282BH
282BH		Gulf Stream Northern Express 284QB
284QB
Key Specifications
Length27'11"30'4"31'5"32'0"34'9"
Width96"96"96"96"96"
Exterior Height11'0"11'0"11'0"11'0"11'0"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight5,6205,9035,9576,2516,737
Hitch Weight6206107407801,020
Net Carrying Capacity2,0001,7072,0423,3291,262
Fresh Water5151515151
Grey Tank7272727236
Black Tank3636363636
Furnace20,000 BTU20,000 BTU35,000 BTU35,000 BTU35,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Northern Express 290RL
290RL		Gulf Stream Northern Express 333BH
333BH
Key Specifications
Length34'4"37'6"
Width96"96"
Exterior Height11'6"11'6"
Interior Height80"80"
Additional Specs
Dry Weight7,1177,937
Hitch Weight9201,020
Net Carrying Capacity2,6032,023
Fresh Water5151
Grey Tank3636
Black Tank3672
Furnace35,000 BTU35,000 BTU
Water Heater6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.

SVT Series Floor Plans

Model TypeGulf Stream Northern Express 18RBD
18RBD		Gulf Stream Northern Express 19FMB
19FMB		Gulf Stream Northern Express 22UDL
22UDL		Gulf Stream Northern Express 21MBS
21MBS		Gulf Stream Northern Express 21MBD
21MBD
Key Specifications
Length21'1"23'3"25'5"22'6"22'6"
Width96"96"96"90"90"
Exterior Height10'4"10'6"10'6"10'6"10'6"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight3,1603,4593,7753,6153,675
Hitch Weight320370420460460
Net Carrying Capacity7401,3113,6652,4452,385
Fresh Water2954545454
Grey Tank3333333333
Black Tank3333333333
Furnace16,000 BTU16,000 BTU20,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Northern Express 21QBS
21QBS		Gulf Stream Northern Express 21QBD
21QBD		Gulf Stream Northern Express 21TBD
21TBD
Key Specifications
Length22'6"22'6"22'6"
Width90"90"90"
Exterior Height10'6"10'6"10'6"
Interior Height80"80"80"
Additional Specs
Dry Weight3,5673,5763,655
Hitch Weight440420460
Net Carrying Capacity2,4732,4442,405
Fresh Water545454
Grey Tank333333
Black Tank333333
Furnace16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.

Signature Series Floor Plans

Model TypeGulf Stream Northern Express 24RBS
24RBS		Gulf Stream Northern Express 25BHS
25BHS		Gulf Stream Northern Express 25RKS
25RKS		Gulf Stream Northern Express 25RLD
25RLD		Gulf Stream Northern Express 28CRB
28CRB
Key Specifications
Length24'8"27'2"27'4"28'0"30'3"
Width96"96"96"96"96"
Exterior Height11'3"11'0"11'0"11'0"10'11"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight4,7005,040TBA4,9116,120
Hitch Weight530540TBA590520
Net Carrying Capacity2,3402,000TBA2,6391,400
Fresh Water3636363636
Grey Tank2929582929
Black Tank2929292929
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU30,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Northern Express 28BBS
28BBS
Key Specifications
Length31'2"
Width96"
Exterior Height11'0"
Interior Height80"
Additional Specs
Dry Weight5,820
Hitch Weight640
Net Carrying Capacity1,220
Fresh Water36
Grey Tank29
Black Tank29
Furnace30,000 BTU
Water Heater6 Gal
LP Tank2 x 20 lbs.
