BT Cruiser Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Touring Cruiser Floor Plans

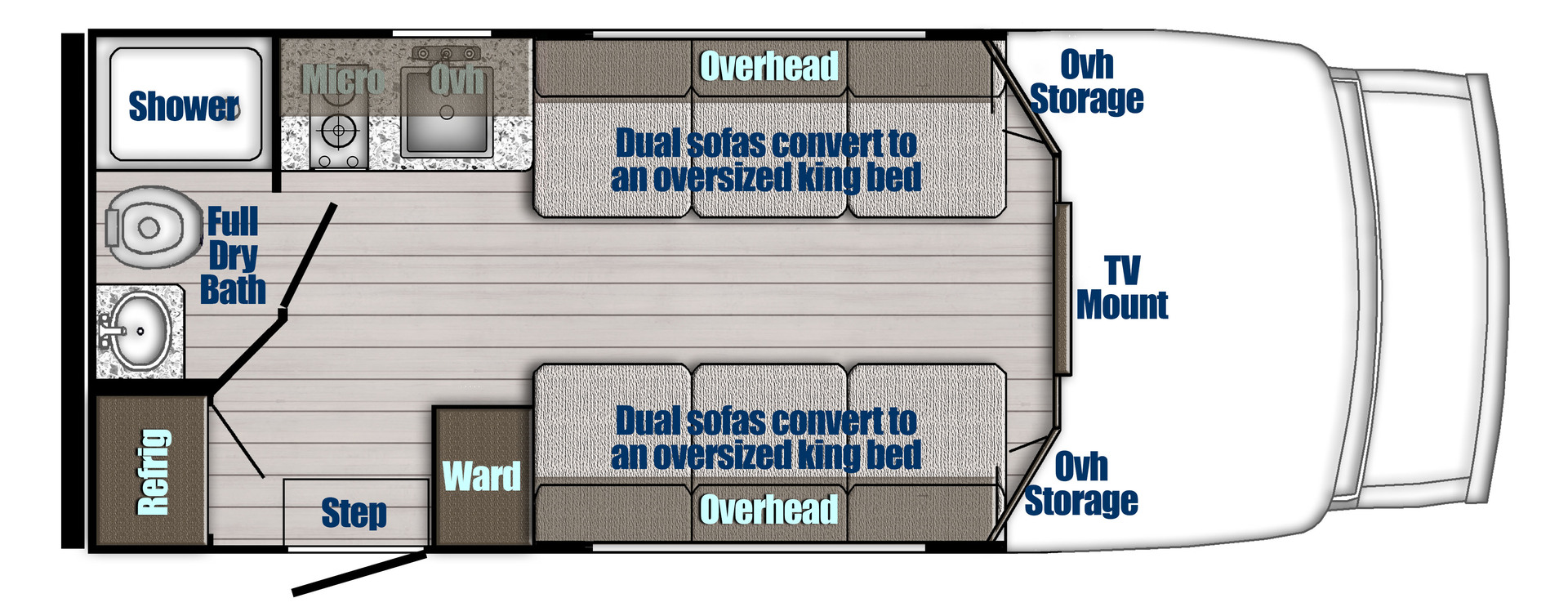

Model TypeGulf Stream BT Cruiser 5210
5210
Gulf Stream BT Cruiser 5230
5230
Gulf Stream BT Cruiser 5240
5240
Gulf Stream BT Cruiser 5245
5245
Gulf Stream BT Cruiser 5255
5255
Key Specifications
Length22'6"24'5"25'4"24'10"28'5"
Width96"96"96"96"96"
Exterior Height10'6"10'6"10'6"10'6"10'6"
Interior Height77"77"77"77"77"
Additional Specs
Fresh Water4141333744
Grey Tank2626383838
Black Tank2626383838
Furnace25,000 BTU25,000 BTU25,000 BTU25,000 BTU25,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank42 lbs42 lbs42 lbs.42 lbs42 lbs
Model TypeGulf Stream BT Cruiser 5270
5270
Key Specifications
Length28'9"
Width96"
Exterior Height10'6"
Interior Height77"
Additional Specs
Fresh Water37
Grey Tank32
Black Tank32
Furnace25,000 BTU
Water Heater6 Gal
LP Tank42 lbs
get a quote
