Conquest Class C Floor Plans

Class C Motor Home Floor Plans

LE Series Floor Plans

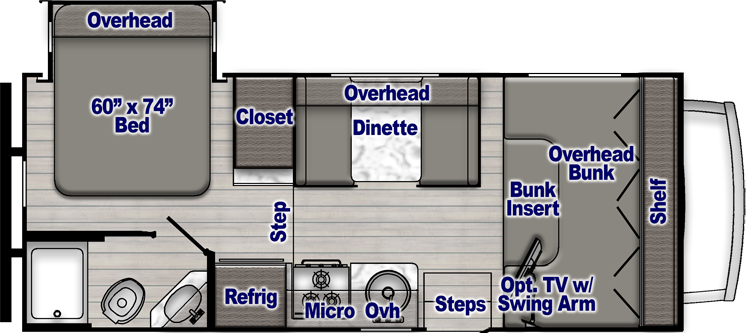

6220LE |

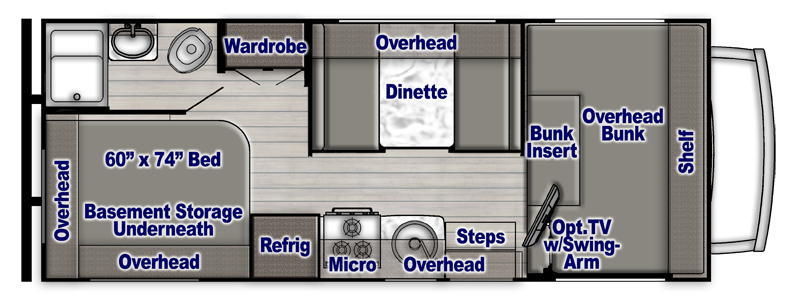

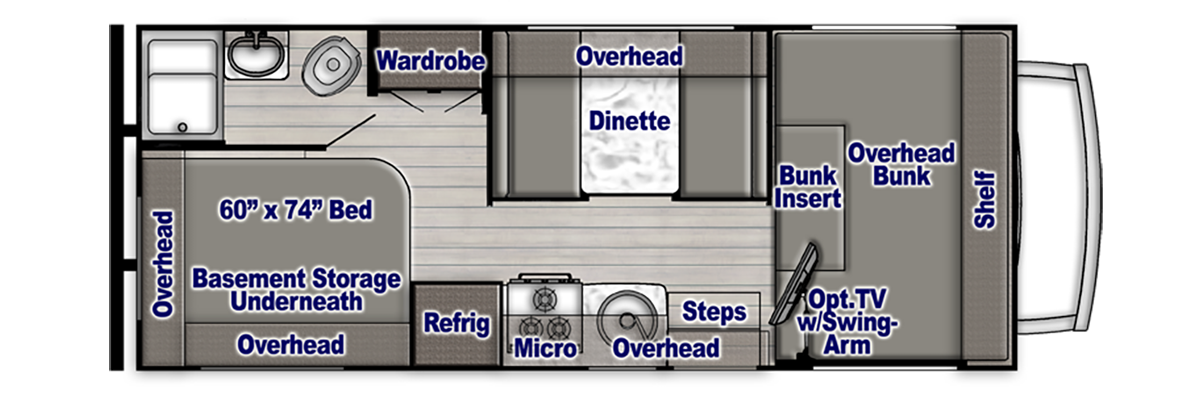

6237LE |

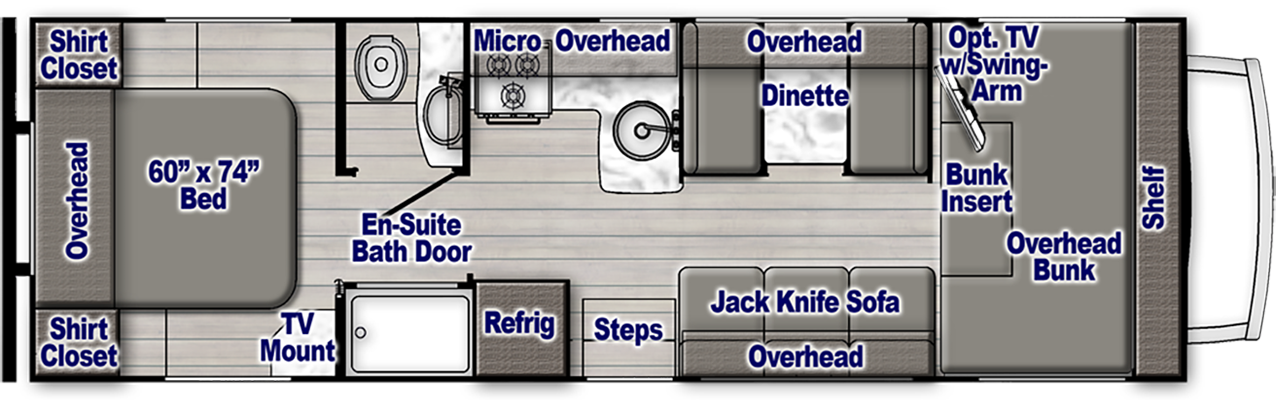

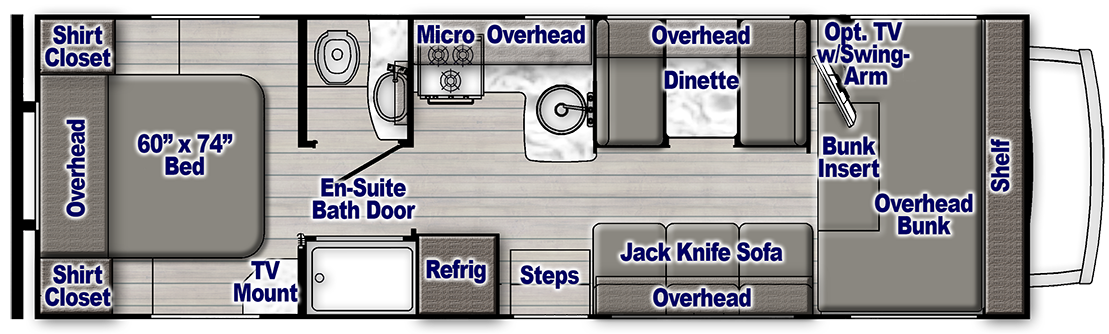

6280LE |

Class C Motor Home Floor Plans

Model Type	6237	6238	6220	6245	6250
Key Specifications
Length	24'1"	24'11"	24'10"	24'10"	26'9"
Width	100"	100"	100"	100"	100"
Exterior Height	11'3"	11'3"	11'3"	11'3"	11'3"
Interior Height	84"	84"	7'1"	7'1"	83"
Additional Specs
Net Carrying Capacity
Fresh Water	37	44	45	37	41
Grey Tank	31	31	24	38	38
Black Tank	31	31	38	38	38
Furnace	25,000 BTU	25,000 BTU	18,000 BTU	25,000 BTU	25,000 BTU
Water Heater	6 Gal	6 Gal	6 Gal	6 Gal	6 Gal
LP Tank	42 lbs	42 lbs	42 lbs.	42 lbs	42 lbs

Model Type	6256	6280	6310	6314	6315
Key Specifications
Length	25'1"	30'0"	31'10"	31'4"	32'0"
Width	100"	100"	100"	100"	100"
Exterior Height	11'3"	11'3"	11'3"	11'3"	11'3"
Interior Height	6'11"	6'11"	80"	7'1"	6'11"
Additional Specs
Net Carrying Capacity			TBA
Fresh Water	37	37	40	35	37
Grey Tank	24	38	38	32	38
Black Tank	24	31	38	32	31
Furnace	25,000 BTU	25,000 BTU	35,000 BTU	35,000	35,000 BTU
Water Heater	6 Gal	6 Gal	6 Gal	6 Gal	6 Gal
LP Tank	42 lbs	42 lbs	42 lbs.	42	42 lbs

Model Type	6316	6317	63111	6320
Key Specifications
Length	32'0"	32'0"	32'0"	32'8"
Width	100"	100"	100"	100"
Exterior Height	11'3"	11'3"	11'3"	11'3"
Interior Height	6'11"	6'11"	6'8"	7'1"
Additional Specs
Net Carrying Capacity
Fresh Water	37	37	37	35
Grey Tank	38	38	38	38
Black Tank	31	31	38	38
Furnace	35,000 BTU	35,000 BTU	35,000 BTU	35,000 BTU
Water Heater	6 Gal	6 Gal	6 Gal	6 Gal
LP Tank	42 lbs	42 lbs	42 lbs	42 lbs

LE Series Floor Plans

Model Type	6220LE	6237LE	6280LE
Key Specifications
Length	24'10"	24'1"	30'0"
Width	100"	100"	100"
Exterior Height	11'3"	11'3"	11'3"
Interior Height	7'1"	7'1"	6'11"
Additional Specs
Fresh Water	45	44	37
Grey Tank	24	31	38
Black Tank	38	31	31
Furnace	18,000 BTU	25,000 BTU	25,000 BTU
Water Heater	6 Gal	6 Gal	6 Gal
LP Tank	42 lbs.	42 lbs.	42 lbs.
