Envision Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Luxury Series Floor Plans

Gulf Stream Envision 220RB
220RB | Overall Weight: 5,620 lbs.

Gulf Stream Envision 246BH
246BH | Overall Weight: 5,903 lbs.

Gulf Stream Envision 258RB
258RB | Overall Weight: 5,957 lbs.

Gulf Stream Envision 282BH
282BH | Overall Weight: 6,251 lbs.

Gulf Stream Envision 284QB
284QB | Overall Weight: 6,737 lbs.

Gulf Stream Envision 290RL
290RL | Overall Weight: 7,117 lbs.

Signature Series Floor Plans

Gulf Stream Envision 24RBS
24RBS | Overall Weight: 4,700 lbs.

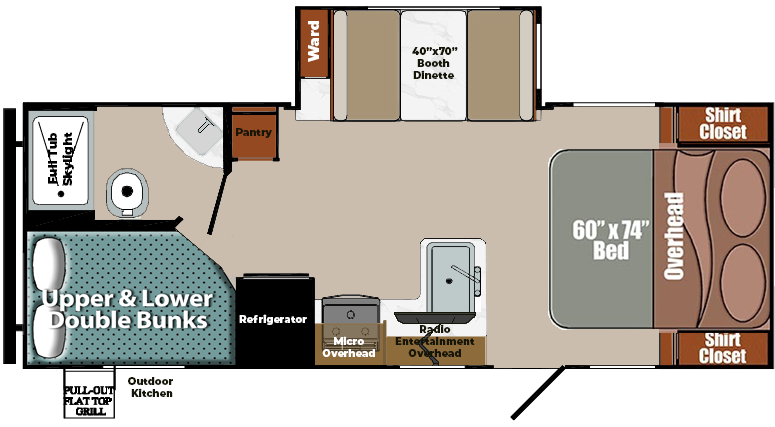

Gulf Stream Envision 25CBQ
25CBQ | Overall Weight: 5,060 lbs.

Gulf Stream Envision 25BHS
25BHS | Overall Weight: 5,040 lbs.

Gulf Stream Envision 25RKS
25RKS | Overall Weight: TBA lbs.

Gulf Stream Envision 25RLD
25RLD | Overall Weight: 4,911 lbs.

Gulf Stream Envision 28CRB
28CRB | Overall Weight: 6,120 lbs.

Gulf Stream Envision 28BBS
28BBS | Overall Weight: 5,820 lbs.

SVT Series Floor Plans

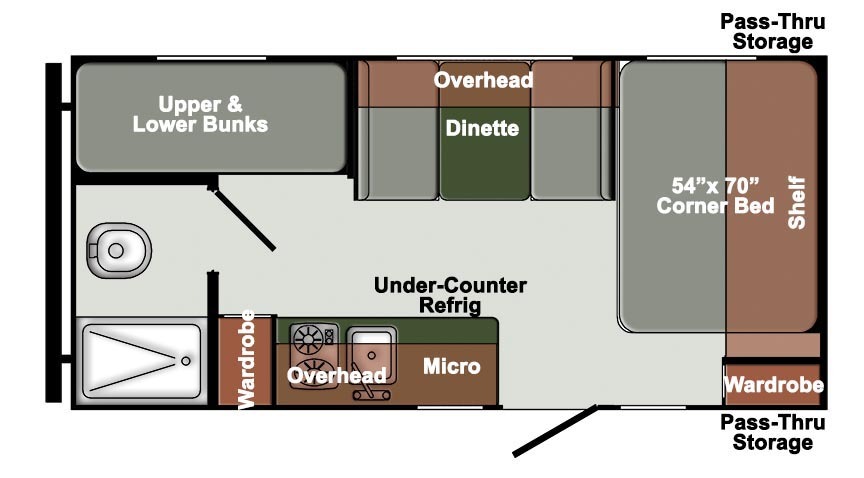

Gulf Stream Envision 18RBD
18RBD | Overall Weight: 3,160 lbs.

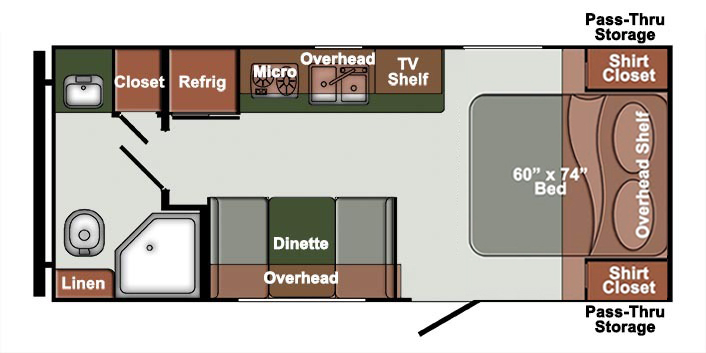

Gulf Stream Envision 19FMB
19FMB | Overall Weight: 3,459 lbs.

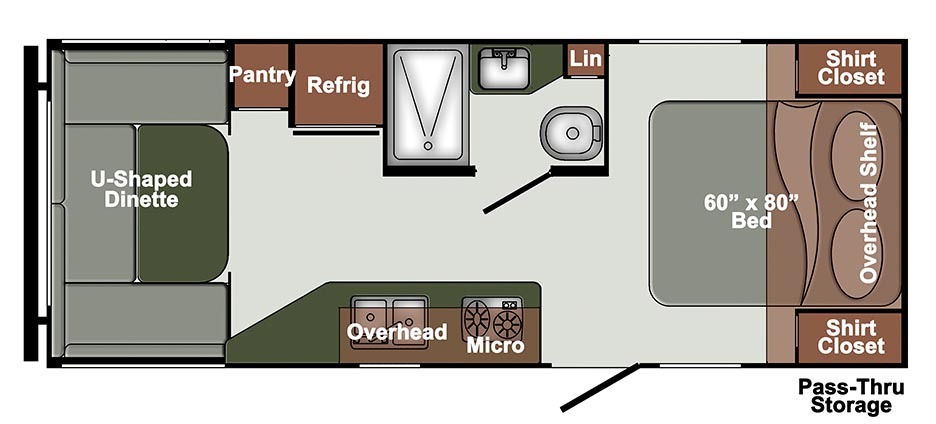

Gulf Stream Envision 22UDL
22UDL | Overall Weight: 3,775 lbs.

Gulf Stream Envision 21MBS
21MBS | Overall Weight: 3,615 lbs.

Gulf Stream Envision 21MBD
21MBD | Overall Weight: 3,675 lbs.

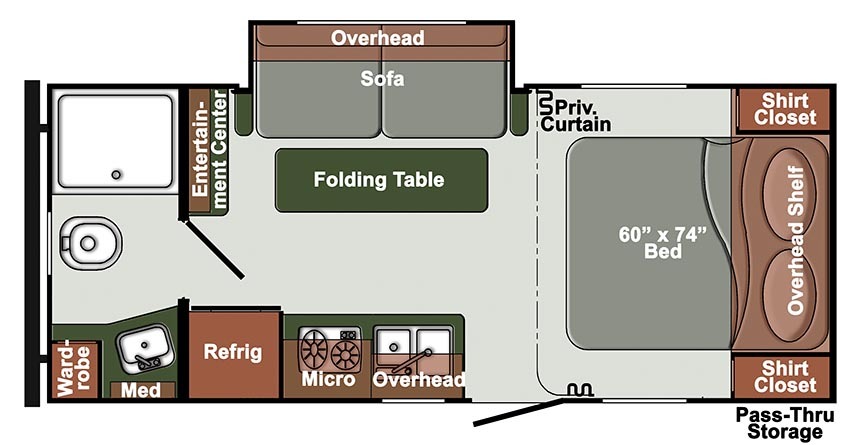

Gulf Stream Envision 21QBS
21QBS | Overall Weight: 3,567 lbs.

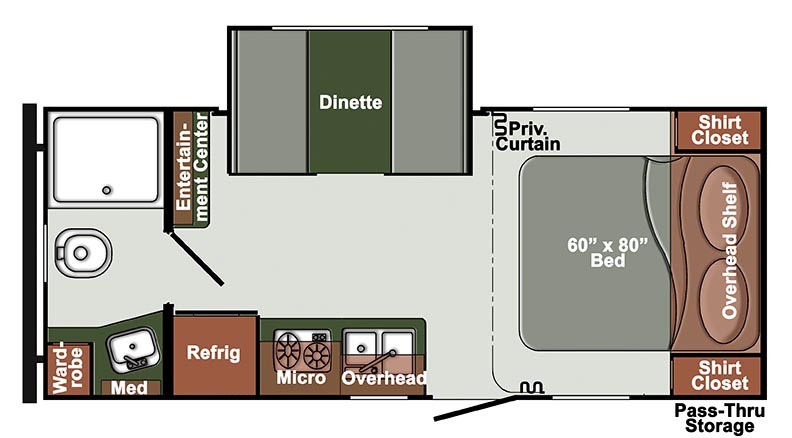

Gulf Stream Envision 21QBD
21QBD | Overall Weight: 3,576 lbs.

Gulf Stream Envision 21TBD
21TBD | Overall Weight: 3,655 lbs.

Gulf Stream Envision 21TBS
21TBS | Overall Weight: 3,576 lbs.

Luxury Series Floor Plans

Model TypeGulf Stream Envision 220RB
220RB		Gulf Stream Envision 246BH
246BH		Gulf Stream Envision 258RB
258RB		Gulf Stream Envision 282BH
282BH		Gulf Stream Envision 284QB
284QB
Key Specifications
Length27'11"30'4"31'5"32'0"34'9"
Width96"96"96"96"96"
Exterior Height11'0"11'0"11'0"11'0"11'0"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight5,6205,9035,9576,2516,737
Hitch Weight6206107407801,020
Net Carrying Capacity2,0001,7072,0423,3291,262
Fresh Water5151515151
Grey Tank7272727236
Black Tank3636363636
Furnace20,000 BTU20,000 BTU35,000 BTU35,000 BTU35,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Envision 290RL
290RL
Key Specifications
Length34'4"
Width96"
Exterior Height11'6"
Interior Height80"
Additional Specs
Dry Weight7,117
Hitch Weight920
Net Carrying Capacity2,603
Fresh Water51
Grey Tank36
Black Tank36
Furnace35,000 BTU
Water Heater6 Gal
LP Tank2 x 20 lbs.

Signature Series Floor Plans

Model TypeGulf Stream Envision 24RBS
24RBS		Gulf Stream Envision 25CBQ
25CBQ		Gulf Stream Envision 25BHS
25BHS		Gulf Stream Envision 25RKS
25RKS		Gulf Stream Envision 25RLD
25RLD
Key Specifications
Length24'8"26'3"27'2"27'4"28'0"
Width96"96"96"96"96"
Exterior Height11'3"11'11'0"11'0"11'0"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight4,7005,0605,040TBA4,911
Hitch Weight530530540TBA590
Net Carrying Capacity2,3402,4702,000TBA2,639
Fresh Water3630363636
Grey Tank2936295829
Black Tank2936292929
Furnace20,000 BTU25K BTU20,000 BTU20,000 BTU20,000 BTU
Water Heater6 GalTANKLESS6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 EA @ 20 LBS2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Envision 28CRB
28CRB		Gulf Stream Envision 28BBS
28BBS
Key Specifications
Length30'3"31'2"
Width96"96"
Exterior Height10'11"11'0"
Interior Height80"80"
Additional Specs
Dry Weight6,1205,820
Hitch Weight520640
Net Carrying Capacity1,4001,220
Fresh Water3636
Grey Tank2929
Black Tank2929
Furnace30,000 BTU30,000 BTU
Water Heater6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.

SVT Series Floor Plans

Model TypeGulf Stream Envision 18RBD
18RBD		Gulf Stream Envision 19FMB
19FMB		Gulf Stream Envision 22UDL
22UDL		Gulf Stream Envision 21MBS
21MBS		Gulf Stream Envision 21MBD
21MBD
Key Specifications
Length21'1"23'3"25'5"22'6"22'6"
Width96"96"96"90"90"
Exterior Height10'4"10'6"10'6"10'6"10'6"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight3,1603,4593,7753,6153,675
Hitch Weight320370420460460
Net Carrying Capacity7401,3113,6652,4452,385
Fresh Water2345474747
Grey Tank3333333333
Black Tank3333333333
Furnace19,000 BTU19,000 BTU20,000 BTU19,000 BTU19,000 BTU
Water HeaterTanklessTanklessTanklessTanklessTankless
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Envision 21QBS
21QBS		Gulf Stream Envision 21QBD
21QBD		Gulf Stream Envision 21TBD
21TBD		Gulf Stream Envision 21TBS
21TBS
Key Specifications
Length22'6"22'6"22'6"22'6"
Width90"90"90"90"
Exterior Height10'6"10'6"10'6"10'6"
Interior Height80"80"80"80"
Additional Specs
Dry Weight3,5673,5763,6553,576
Hitch Weight440420460420
Net Carrying Capacity2,4732,4442,4052,444
Fresh Water47474747
Grey Tank33333333
Black Tank33333333
Furnace19,000 BTU19,000 BTU19,000 BTU19,000 BTU
Water HeaterTanklessTanklessTanklessTankless
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
