Innsbruck Lite Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Ultra-Lite Floor Plans

Gulf Stream Innsbruck Lite 20RBS
20RBS | Overall Weight: 4,360 lbs.

Gulf Stream Innsbruck Lite 22RSD
22RSD | Overall Weight: 4,170 lbs.

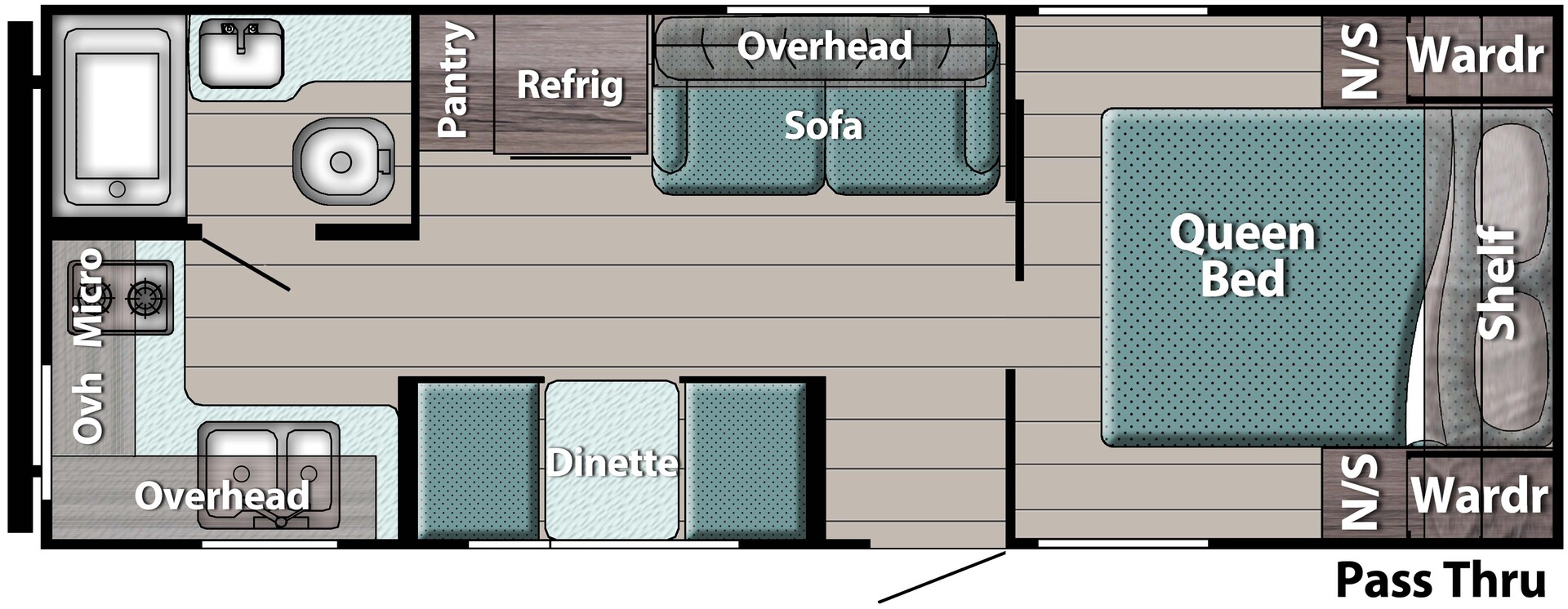

Gulf Stream Innsbruck Lite 221RK
221RK | Overall Weight: 4,620 lbs.

Gulf Stream Innsbruck Lite 236RL
236RL | Overall Weight: 5,140 lbs.

Gulf Stream Innsbruck Lite 228SB
228SB | Overall Weight: 4430 LBS lbs.

Gulf Stream Innsbruck Lite 238RK
238RK | Overall Weight: 4,815 lbs.

Gulf Stream Innsbruck Lite 241RB
241RB | Overall Weight: 4,031 lbs.

Gulf Stream Innsbruck Lite 240RK
240RK | Overall Weight: 5,250 LBS lbs.

Gulf Stream Innsbruck Lite 248BH
248BH | Overall Weight: 3,899 lbs.

Gulf Stream Innsbruck Lite 24RLS
24RLS | Overall Weight: 5,050 lbs.

Gulf Stream Innsbruck Lite 26BHG
26BHG | Overall Weight: 4,930 lbs.

Gulf Stream Innsbruck Lite 251RE
251RE | Overall Weight: 5,990 lbs.

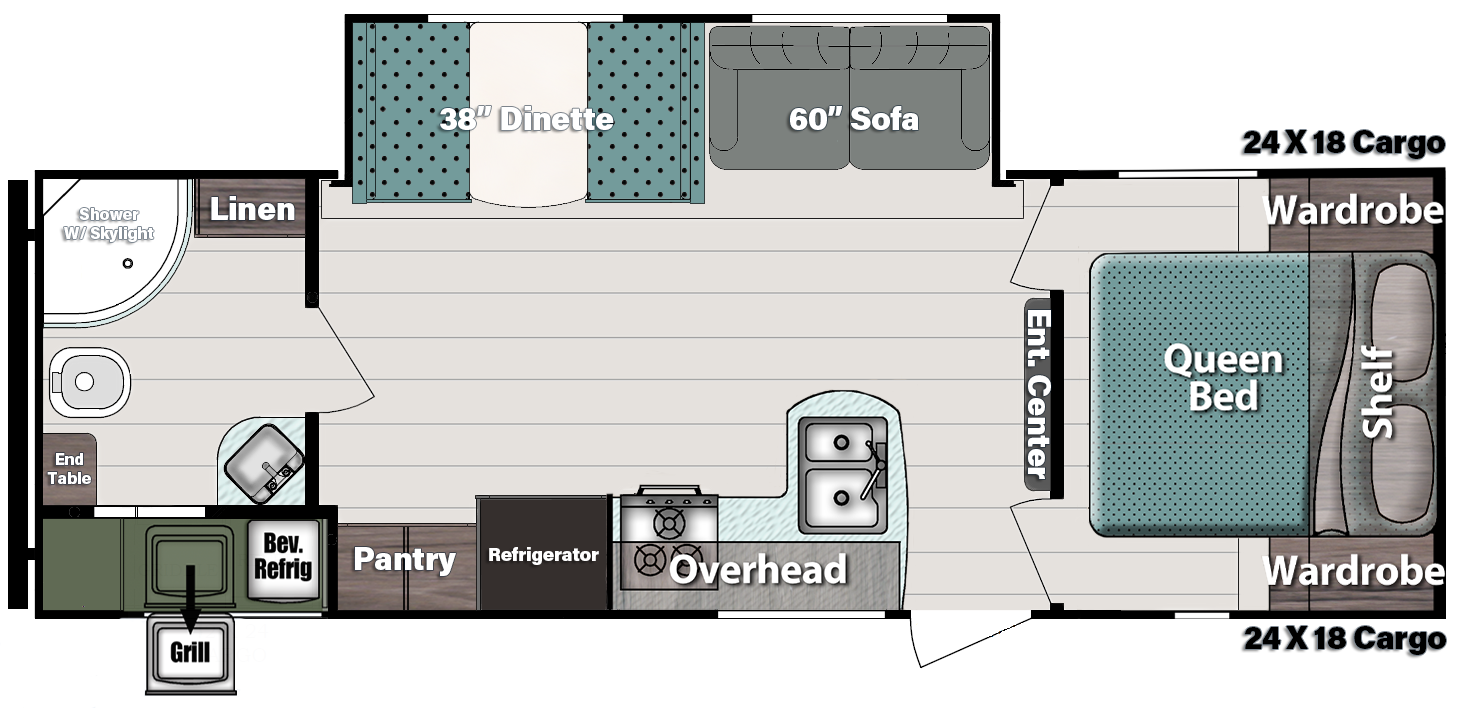

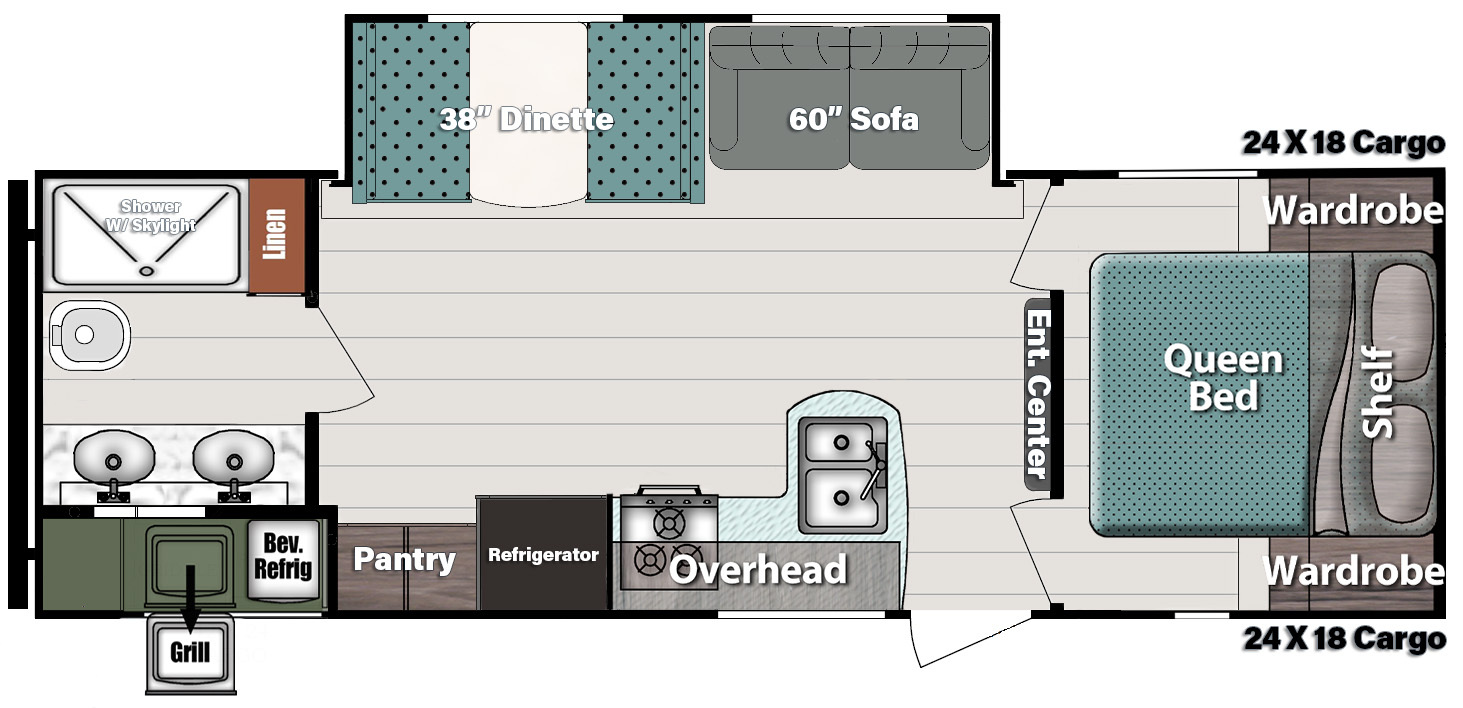

Gulf Stream Innsbruck Lite 257RB
257RB | Overall Weight: 6,010 lbs.

Gulf Stream Innsbruck Lite 268BH
268BH | Overall Weight: 5,177 lbs.

Gulf Stream Innsbruck Lite 269BH
269BH | Overall Weight: 5,460 lbs.

Gulf Stream Innsbruck Lite 275FBG
275FBG | Overall Weight: 5,100 lbs.

Gulf Stream Innsbruck Lite 274QB
274QB | Overall Weight: 6,230 lbs.

Gulf Stream Innsbruck Lite 279BH
279BH | Overall Weight: 6,210 lbs.

Gulf Stream Innsbruck Lite 292RBH
292RBH | Overall Weight: 6320 LBS lbs.

Super Lite Floor Plans

Gulf Stream Innsbruck Lite 14RE
14RE | Overall Weight: 2,780 lbs.

Gulf Stream Innsbruck Lite 15TH
15TH | Overall Weight: 2,850 lbs.

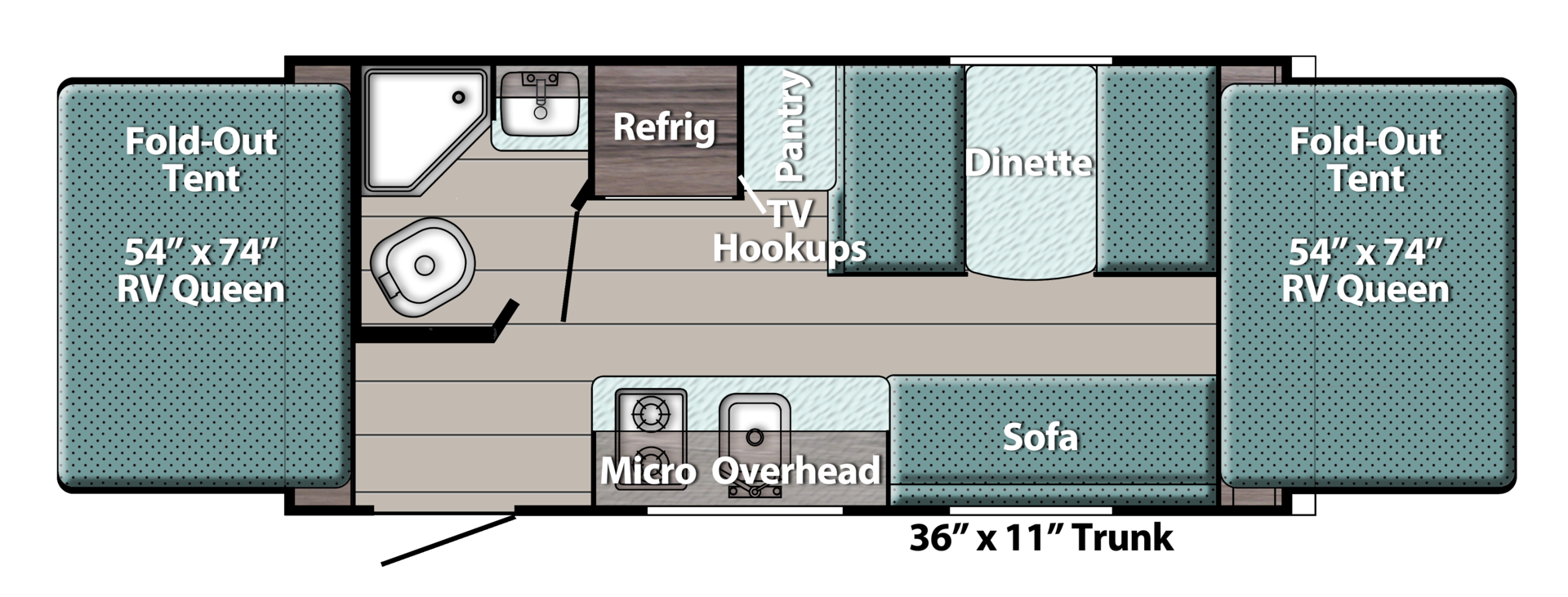

Gulf Stream Innsbruck Lite 16RBT
16RBT | Overall Weight: 3,170 lbs.

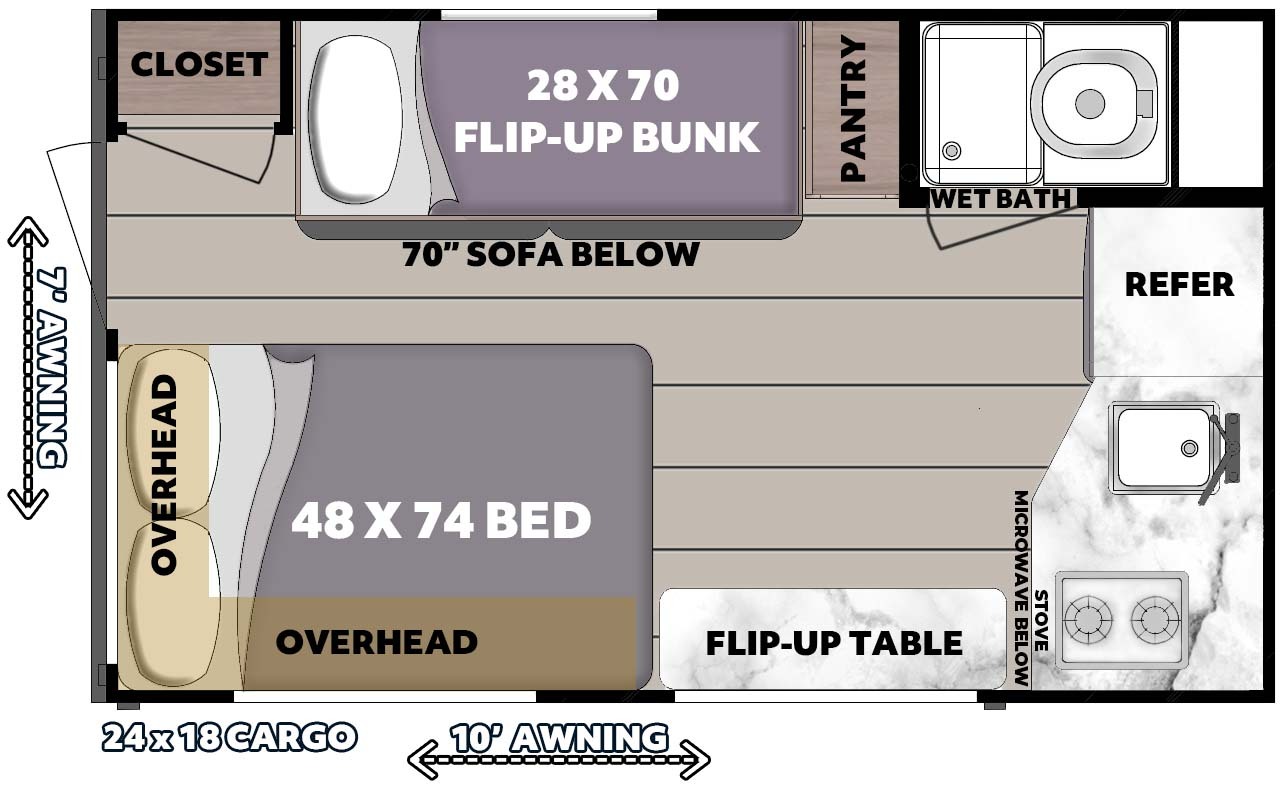

Gulf Stream Innsbruck Lite 16RD
16RD | Overall Weight: 2,960 lbs.

Gulf Stream Innsbruck Lite 134RD
134RD | Overall Weight: 2,630 lbs.

Gulf Stream Innsbruck Lite 134BH
134BH | Overall Weight: 2,630 lbs.

Gulf Stream Innsbruck Lite 177BH
177BH | Overall Weight: 2,810 lbs.

Gulf Stream Innsbruck Lite 178RB
178RB | Overall Weight: 2,920 lbs.

Gulf Stream Innsbruck Lite 189DD
189DD | Overall Weight: 2,996 lbs.

Gulf Stream Innsbruck Lite 199DD
199DD | Overall Weight: 3,100 lbs.

Gulf Stream Innsbruck Lite 197BH
197BH | Overall Weight: 3,663 lbs.

Gulf Stream Innsbruck Lite 199RK
199RK | Overall Weight: 3,520 lbs.

Gulf Stream Innsbruck Lite 19RD
19RD | Overall Weight: 3,552 lbs.

Gulf Stream Innsbruck Lite 192DS
192DS | Overall Weight: 3,940 lbs.

Ultra-Lite Floor Plans

Model TypeGulf Stream Innsbruck Lite 20RBS
20RBS		Gulf Stream Innsbruck Lite 22RSD
22RSD		Gulf Stream Innsbruck Lite 221RK
221RK		Gulf Stream Innsbruck Lite 236RL
236RL		Gulf Stream Innsbruck Lite 228SB
228SB
Key Specifications
Length22'11"25'8"25'6"28'1"23'4"
Width8'8'96"8'8'
Exterior Height11'2"10'9"10'4"11'3"10'6"
Interior Height6'8"6'8"80"6'8"80'
Additional Specs
Dry Weight4,3604,1704,6205,1404430 LBS
Hitch Weight400490560930530LBS
Net Carrying Capacity3,0273,3202,9402,7901300 LBS
Fresh Water3635352335
Grey Tank2934343434
Black Tank2933333434
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water HeaterTanklessTanklessTanklessTanklessTankless
LP Tank2 x 20 lbs2 x 20 lbs20 lbs2 x 20 lbs1 EA @ 20 LBS
Model TypeGulf Stream Innsbruck Lite 238RK
238RK		Gulf Stream Innsbruck Lite 241RB
241RB		Gulf Stream Innsbruck Lite 240RK
240RK		Gulf Stream Innsbruck Lite 248BH
248BH		Gulf Stream Innsbruck Lite 24RLS
24RLS
Key Specifications
Length28'6"27'4"26'3"26'7"28'10"
Width8'8'8"8'8'
Exterior Height11'1"9'10"11'1"10'4"11'1"
Interior Height6'8"6'8"80"6'8"6'8"
Additional Specs
Dry Weight4,8154,0315,250 LBS3,8995,050
Hitch Weight640478650 LBS500580
Net Carrying Capacity2,8653,4872,400 LBS3,6014,330
Fresh Water2330352335
Grey Tank6836343633
Black Tank3436343633
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water HeaterTanklessTanklessTanklessTanklessTankless
LP Tank2 x 20 lbs2 x 20 lbs2 Ea @ 20 LBS2 x 20 lbs2 x 20 lbs
Model TypeGulf Stream Innsbruck Lite 26BHG
26BHG		Gulf Stream Innsbruck Lite 251RE
251RE		Gulf Stream Innsbruck Lite 257RB
257RB		Gulf Stream Innsbruck Lite 268BH
268BH		Gulf Stream Innsbruck Lite 269BH
269BH
Key Specifications
Length30'0"30'28'1"29'6"29'11"
Width8'8'96"8'8'
Exterior Height10'5"11'1"11'1"11'1"11'1"
Interior Height6'8"80"6'8"6'8"6'8"
Additional Specs
Dry Weight4,9305,9906,0105,1775,460
Hitch Weight590550880660670
Net Carrying Capacity2,6601,5601,8702,4832,210
Fresh Water3536 GAL352323
Grey Tank3368 GAL343333
Black Tank3434 GAL333434
Furnace25,000 BTU25K BTU20,00020,000 BTU20,000 BTU
Water HeaterTanklessTANKLESSTanklessTanklessTankless
LP Tank2 x 20 lbs2 EA @ 20 LBS2 x 20 lbs.2 x 20 lbs2 x 20 lbs
Model TypeGulf Stream Innsbruck Lite 275FBG
275FBG		Gulf Stream Innsbruck Lite 274QB
274QB		Gulf Stream Innsbruck Lite 279BH
279BH		Gulf Stream Innsbruck Lite 292RBH
292RBH
Key Specifications
Length30'0"32'6"32'6"33'11"
Width8'8'8'8'
Exterior Height10'5"11'1"11'1"11'1"
Interior Height6'8"6'8"6'8"80'
Additional Specs
Dry Weight5,1006,2306,2106320 LBS
Hitch Weight710840810920 LBS
Net Carrying Capacity2,6101,6101,6001600 LBS
Fresh Water35232335 GAL
Grey Tank33333333 GAL
Black Tank33333334 GAL
Furnace20,000 BTU20,000 BTU20,000 BTU19K BTU
Water HeaterTanklessTanklessTanklessTANKLESS
LP Tank2 x 20 lbs.2 x 20 lbs2 x 20 lbs2 Ea @ 20 LBS

Super Lite Floor Plans

Model TypeGulf Stream Innsbruck Lite 14RE
14RE		Gulf Stream Innsbruck Lite 15TH
15TH		Gulf Stream Innsbruck Lite 16RBT
16RBT		Gulf Stream Innsbruck Lite 16RD
16RD		Gulf Stream Innsbruck Lite 134RD
134RD
Key Specifications
Length15'10"16'2"19'1"16'3"16'
Width7'6"8'7'96"90'
Exterior Height10'3"10'-9"10'4"10'9"10'3"
Interior Height6'8"80"6'8"80"80'
Additional Specs
Dry Weight2,7802,8503,1702,9602,630
Hitch Weight300480340430400
Net Carrying Capacity1,0201,1306709701,270
Fresh Water2335233535
Grey Tank3627273334
Black Tank3618271833
Furnace20,000 BTU20K20,000 BTU20,000 BTU20K BTU
Water HeaterTankless6 GalTanklessTanklessTANKLESS
LP Tank20 lbs.1 EA @ 20 LBS20 lbs1 x 20 lbs1 EA @ 20 LBS
Model TypeGulf Stream Innsbruck Lite 134BH
134BH		Gulf Stream Innsbruck Lite 177BH
177BH		Gulf Stream Innsbruck Lite 178RB
178RB		Gulf Stream Innsbruck Lite 189DD
189DD		Gulf Stream Innsbruck Lite 199DD
199DD
Key Specifications
Length16'20'11"20'11"20'11"20'11"
Width90'8'8'8'8'
Exterior Height10'3"10'4"10'4"10'4"10'4"
Interior Height80'6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight2,6302,8102,9202,9963,100
Hitch Weight400330360350360
Net Carrying Capacity1,2701,0201,080854760
Fresh Water3523232323
Grey Tank3436363436
Black Tank3336363436
Furnace20K BTUElec. HeatElec. Heat20,000 BTU20,000 BTU
Water HeaterTANKLESSTanklessTanklessTanklessTankless
LP Tank1 EA @ 20 LBS20 lbs.20 lbs.20 lbs.20 lbs.
Model TypeGulf Stream Innsbruck Lite 197BH
197BH		Gulf Stream Innsbruck Lite 199RK
199RK		Gulf Stream Innsbruck Lite 19RD
19RD		Gulf Stream Innsbruck Lite 192DS
192DS
Key Specifications
Length22'2"22'2"23'1"22'3"
Width8'8'8'8'
Exterior Height10'8"10'8"10'8"10'6"
Interior Height6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight3,6633,5203,5523,940
Hitch Weight638490390400
Net Carrying Capacity1,3951,3701,238860
Fresh Water23232323
Grey Tank36363634
Black Tank36363634
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water HeaterTanklessTanklessTanklessTankless
LP Tank20 lbs.20 lbs.20 lbs.20 lbs
