Innsbruck Lite Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Ultra Lite Floor Plans

Model TypeGulf Stream Innsbruck Lite 218MB
218MB
Gulf Stream Innsbruck Lite 22RSD
22RSD
Gulf Stream Innsbruck Lite 236RL
236RL
Gulf Stream Innsbruck Lite 238RK
238RK
Gulf Stream Innsbruck Lite 241RB
241RB
Key Specifications
Length22'5"25'7"28'1"28'6"27'4"
Width96"96"96"96"96"
Exterior Height9'10"10'9"11'3"11'1"9'10"
Interior Height6'8"80"6'8"6'8"6'8"
Additional Specs
Dry Weight3,6853,1305,1404,8154,031
Hitch Weight400580930640478
Net Carrying Capacity3,7154,4502,7902,8653,487
Fresh Water3030303030
Grey Tank3636363636
Black Tank3636363636
Furnace16,000 BTU16,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs2 x 20 lbs2 x 20 lbs2 x 20 lbs2 x 20 lbs
Model TypeGulf Stream Innsbruck Lite 248BH
248BH
Gulf Stream Innsbruck Lite 24RLS
24RLS

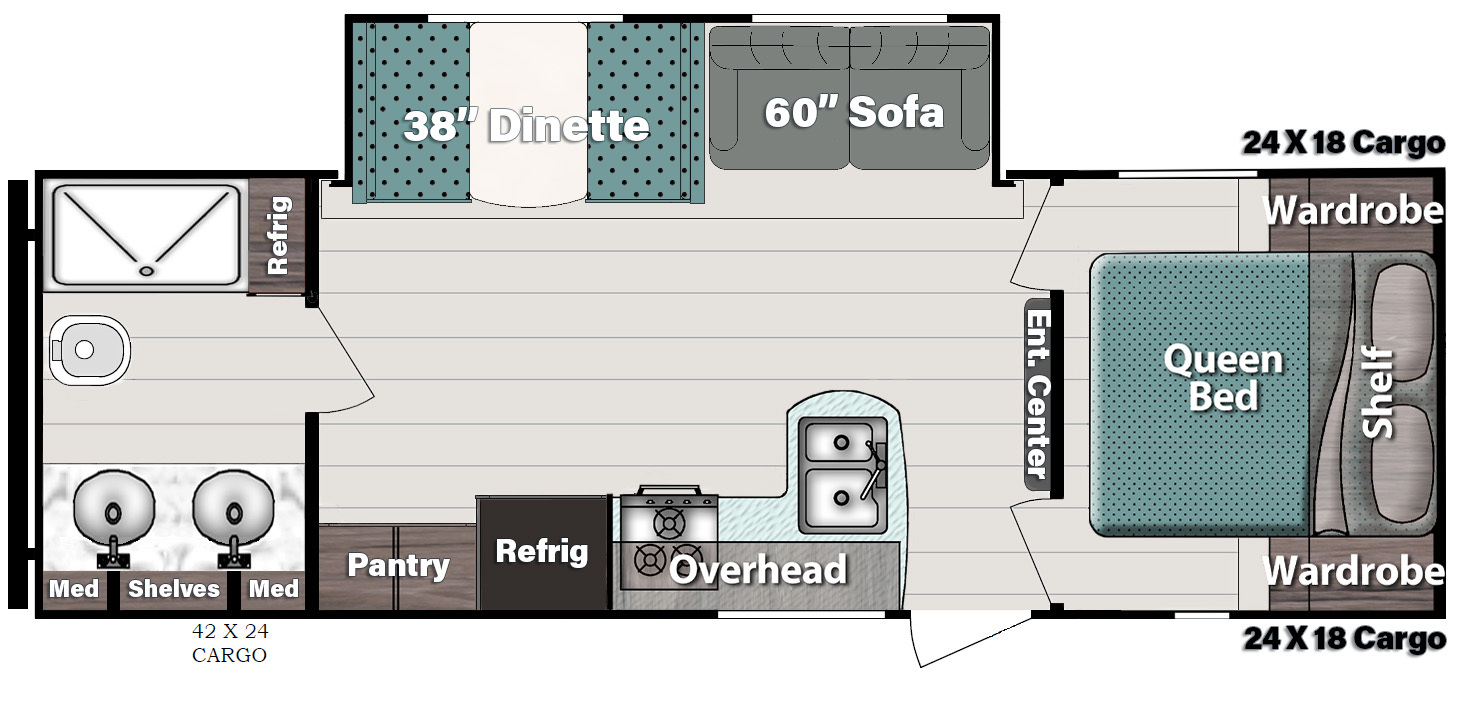

Gulf Stream Innsbruck Lite 257RB
257RB
Gulf Stream Innsbruck Lite 268BH
268BH
Gulf Stream Innsbruck Lite 274QB
274QB
Key Specifications
Length26'7"28'10"28'1"29'6"32'3"
Width96"96"96"96"96"
Exterior Height9'10"11'1"11'1"11'1"11'1"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight3,8995,0505,5125,1775,802
Hitch Weight500580740660720
Net Carrying Capacity3,6014,3302,2282,4831,918
Fresh Water3036303030
Grey Tank3636363636
Black Tank3636363636
Furnace16,000 BTU20,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs2 x 20 lbs2 x 20 lbs.2 x 20 lbs2 x 20 lbs
Model TypeGulf Stream Innsbruck Lite 279BH
279BH
Gulf Stream Innsbruck Lite 280BH
280BH
Gulf Stream Innsbruck Lite 281BH
281BH
Gulf Stream Innsbruck Lite 285DB
285DB
Key Specifications
Length32'6"33'0"33'0"35'0"
Width96"96"96"96"
Exterior Height11'1"11'3"11'1"11'3"
Interior Height6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight5,2735,4406,0536,200
Hitch Weight7308508301,060
Net Carrying Capacity2,4572,7101,7771,300
Fresh Water30303030
Grey Tank36363672
Black Tank36363674
Furnace16,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs2 x 20 lbs2 x 20 lbs2 x 20 lbs

Super Lite Floor Plans

Model TypeGulf Stream Innsbruck Lite 16RE
16RE

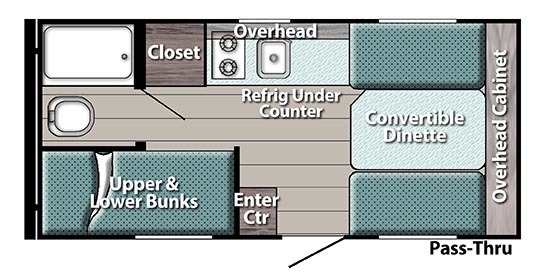

Gulf Stream Innsbruck Lite 16BHC
16BHC
Gulf Stream Innsbruck Lite 177BH
177BH
Gulf Stream Innsbruck Lite 188RB
188RB
Gulf Stream Innsbruck Lite 189DD
189DD
Key Specifications
Length15'11"18'10"20'11"20'11"20'11"
Width90"84"96"96"96"
Exterior Height10'3"10'4"10'4"10'4"10'4"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight2,8132,6122,8102,8452,996
Hitch Weight300360330344350
Net Carrying Capacity1,0071,2681,0201,019854
Fresh Water3030303030
Grey Tank3636363636
Black Tank1736363636
Furnace16,000 BTUs16,000 BTUsElec. Heat16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank20 lbs.20 lbs.20 lbs.20 lbs.20 lbs.
Model TypeGulf Stream Innsbruck Lite 192DS
192DS
Gulf Stream Innsbruck Lite 197BH
197BH
Gulf Stream Innsbruck Lite 199DD
199DD
Gulf Stream Innsbruck Lite 199RK
199RK
Gulf Stream Innsbruck Lite 19DS
19DS
Key Specifications
Length23'2"22'2"20'11"22'2"21'5"
Width96"96"96"96"84"
Exterior Height10'8"10'8"10'4"10'8"10'4"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight3,5803,6633,1003,5202,802
Hitch Weight390638360490460
Net Carrying Capacity1,2381,3957601,3701,158
Fresh Water3030303030
Grey Tank3636363636
Black Tank3636363636
Furnace16,000 BTU16,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank20 lbs20 lbs.20 lbs.20 lbs.20 lbs.
Model TypeGulf Stream Innsbruck Lite 19RD
19RD
Key Specifications
Length23'1"
Width96"
Exterior Height10'8"
Interior Height6'8"
Additional Specs
Dry Weight3,552
Hitch Weight390
Net Carrying Capacity1,238
Fresh Water30
Grey Tank36
Black Tank36
Furnace16,000 BTU
Water Heater6 Gal
LP Tank20 lbs.
