Trailmaster Lite Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Trailmaster Ultra-Lites Floor Plans

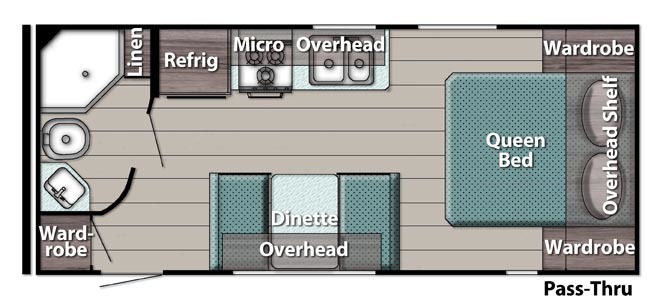

Gulf Stream Trailmaster Lite 218MB
218MB | Overall Weight: 3,685 lbs.

Gulf Stream Trailmaster Lite 236RL
236RL | Overall Weight: 5,140 lbs.

Gulf Stream Trailmaster Lite 238RK
238RK | Overall Weight: 4,815 lbs.

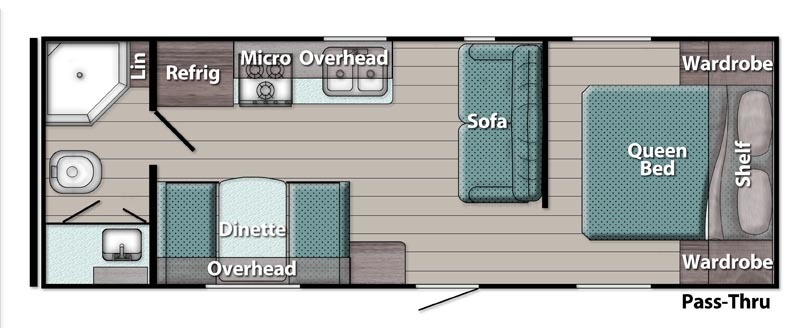

Gulf Stream Trailmaster Lite 241RB
241RB | Overall Weight: 4,031 lbs.

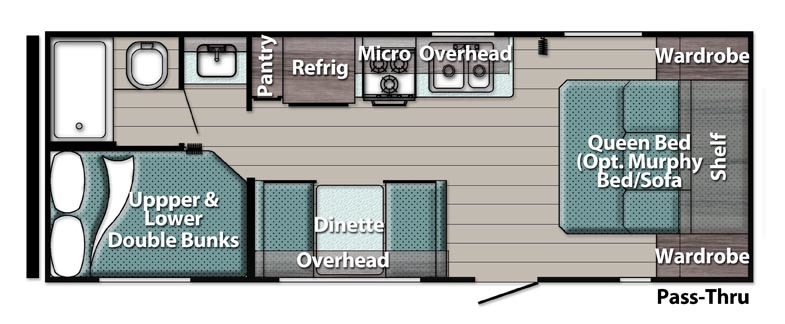

Gulf Stream Trailmaster Lite 248BH
248BH | Overall Weight: 3,899 lbs.

Gulf Stream Trailmaster Lite 24RLS
24RLS | Overall Weight: 5,050 lbs.

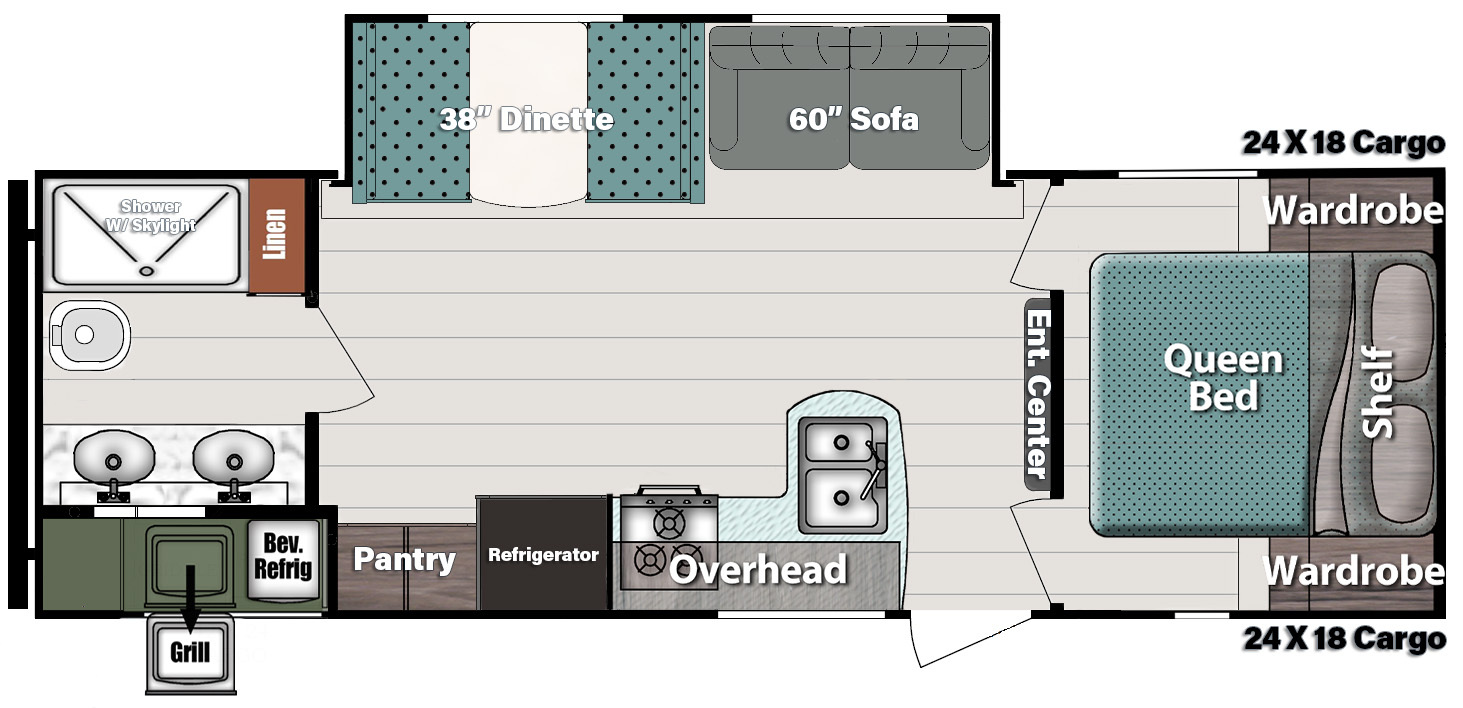

Gulf Stream Trailmaster Lite 257RB
257RB | Overall Weight: 5,512 lbs.

Gulf Stream Trailmaster Lite 268BH
268BH | Overall Weight: 5,177 lbs.

Gulf Stream Trailmaster Lite 274QB
274QB | Overall Weight: 5,802 lbs.

Gulf Stream Trailmaster Lite 279BH
279BH | Overall Weight: 5,273 lbs.

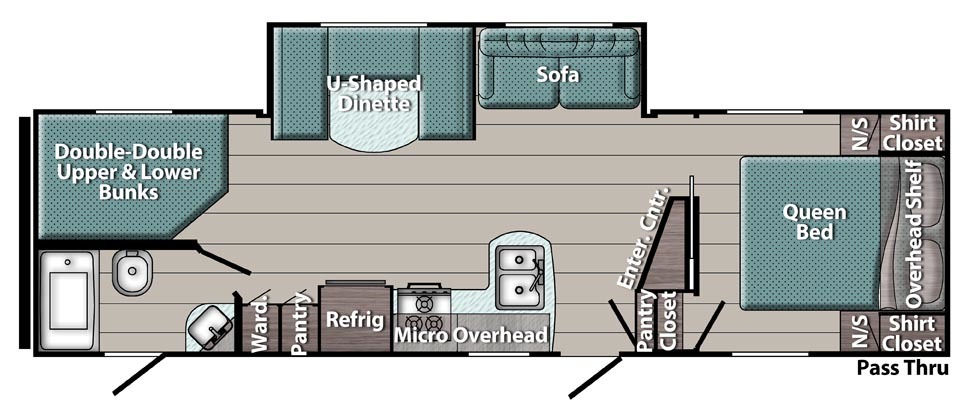

Gulf Stream Trailmaster Lite 280BH
280BH | Overall Weight: 5,440 lbs.

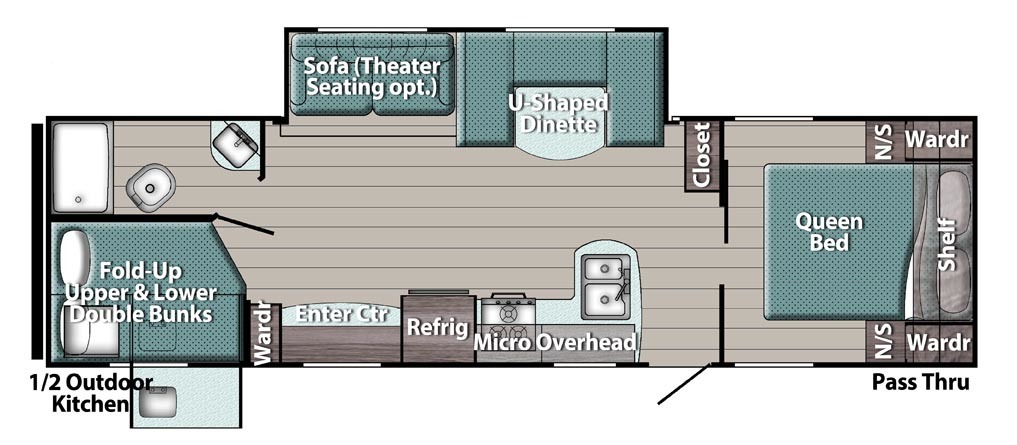

Gulf Stream Trailmaster Lite 281BH
281BH | Overall Weight: 6,053 lbs.

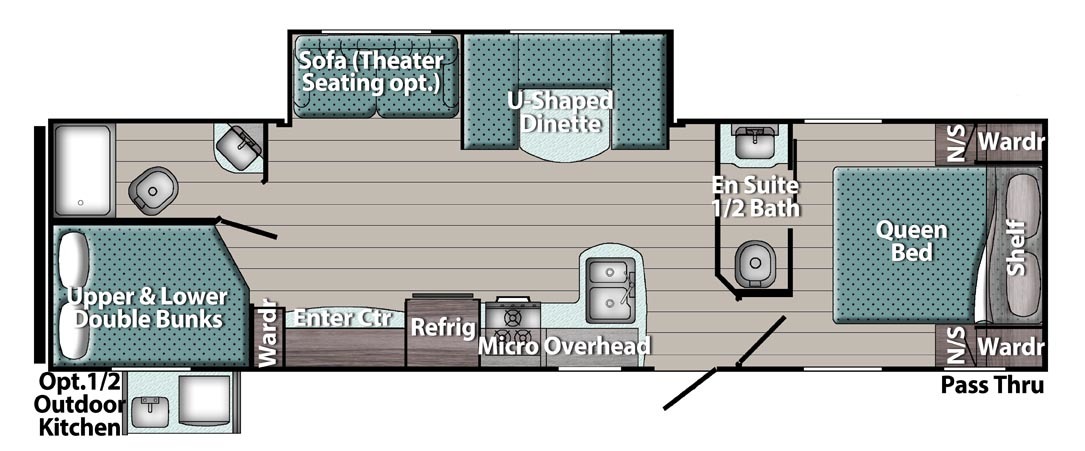

Gulf Stream Trailmaster Lite 285DB
285DB | Overall Weight: 6,200 lbs.

Super Lite Floor Plans

Gulf Stream Trailmaster Lite 16RE
16RE | Overall Weight: 2,813 lbs.

Gulf Stream Trailmaster Lite 16BHC
16BHC | Overall Weight: 2,612 lbs.

Gulf Stream Trailmaster Lite 188RB
188RB | Overall Weight: 2,845 lbs.

Gulf Stream Trailmaster Lite 189DD
189DD | Overall Weight: 2,996 lbs.

Gulf Stream Trailmaster Lite 192DS
192DS | Overall Weight: 3,580 lbs.

Gulf Stream Trailmaster Lite 197BH
197BH | Overall Weight: 3,663 lbs.

Gulf Stream Trailmaster Lite 198BH
198BH | Overall Weight: 2,675 lbs.

Gulf Stream Trailmaster Lite 199DD
199DD | Overall Weight: 3,100 lbs.

Gulf Stream Trailmaster Lite 199RK
199RK | Overall Weight: 3,520 lbs.

Gulf Stream Trailmaster Lite 19DS
19DS | Overall Weight: 2,802 lbs.

Gulf Stream Trailmaster Lite 19RD
19RD | Overall Weight: 3,552 lbs.

Trailmaster Ultra-Lites Floor Plans

Model TypeGulf Stream Trailmaster Lite 218MB
218MB		Gulf Stream Trailmaster Lite 236RL
236RL		Gulf Stream Trailmaster Lite 238RK
238RK		Gulf Stream Trailmaster Lite 241RB
241RB		Gulf Stream Trailmaster Lite 248BH
248BH
Key Specifications
Length22'5"28'1"28'6"27'4"26'7"
Width96"96"96"96"96"
Exterior Height9'6"11'3"11'1"9'10"9'10"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight3,6855,1404,8154,0313,899
Hitch Weight400930640478500
Net Carrying Capacity3,7152,7902,8653,4873,601
Fresh Water3030303030
Grey Tank3636363636
Black Tank3636363636
Furnace16,000 BTU16,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs2 x 20 lbs2 x 20 lbs2 x 20 lbs2 x 20 lbs
Model TypeGulf Stream Trailmaster Lite 24RLS
24RLS		Gulf Stream Trailmaster Lite 257RB
257RB		Gulf Stream Trailmaster Lite 268BH
268BH		Gulf Stream Trailmaster Lite 274QB
274QB		Gulf Stream Trailmaster Lite 279BH
279BH
Key Specifications
Length28'10"28'1"29'6"32'3"32'6"
Width96"96"96"96"96"
Exterior Height11'1"11'1"11'1"11'1"11'1"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight5,0505,5125,1775,8025,273
Hitch Weight580740660720730
Net Carrying Capacity4,3302,2282,4831,9182,457
Fresh Water3630303030
Grey Tank3636363636
Black Tank3636363636
Furnace20,000 BTU16,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs2 x 20 lbs2 x 20 lbs2 x 20 lbs20 x 20 lbs
Model TypeGulf Stream Trailmaster Lite 280BH
280BH		Gulf Stream Trailmaster Lite 281BH
281BH		Gulf Stream Trailmaster Lite 285DB
285DB
Key Specifications
Length33'0"33'0"35'0"
Width96"96"96"
Exterior Height11'3"11'1"11'3"
Interior Height6'8"6'8"6'8"
Additional Specs
Dry Weight5,4406,0536,200
Hitch Weight8508301,060
Net Carrying Capacity2,7101,7771,300
Fresh Water303030
Grey Tank363672
Black Tank363674
Furnace16,00016,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs2 x 20 lbs2 x 20 lbs

Super Lite Floor Plans

Model TypeGulf Stream Trailmaster Lite 16RE
16RE		Gulf Stream Trailmaster Lite 16BHC
16BHC		Gulf Stream Trailmaster Lite 188RB
188RB		Gulf Stream Trailmaster Lite 189DD
189DD		Gulf Stream Trailmaster Lite 192DS
192DS
Key Specifications
Length15'11"18'10"20'11"20'11"23'2"
Width90"84"96"96"96"
Exterior Height10'3"10'4"10'4"10'4"10'8"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight2,8132,6122,8452,9963,580
Hitch Weight300360344350390
Net Carrying Capacity1,0071,2681,0198541,238
Fresh Water3030303030
Grey Tank3636363636
Black Tank1736363636
Furnace16,000 BTU16,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank20 lbs20 lbs20 lbs20 lbs20 lbs
Model TypeGulf Stream Trailmaster Lite 197BH
197BH		Gulf Stream Trailmaster Lite 198BH
198BH		Gulf Stream Trailmaster Lite 199DD
199DD		Gulf Stream Trailmaster Lite 199RK
199RK		Gulf Stream Trailmaster Lite 19DS
19DS
Key Specifications
Length22'2"20'11"20'11"22'2"21'5"
Width96"96"96"96"84"
Exterior Height10'1"10'4"10'4"10'8"10'4"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight3,6632,6753,1003,5202,802
Hitch Weight638350360490460
Net Carrying Capacity1,3951,1357601,3701,158
Fresh Water3030303030
Grey Tank3636363636
Black Tank3636363636
Furnace16,000 BTU16,000 BTU16,000 BTU16,000 BTU16,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank20 lbs.20 lbs20 lbs20 lbs20 lbs
Model TypeGulf Stream Trailmaster Lite 19RD
19RD
Key Specifications
Length23'1"
Width96"
Exterior Height10'8"
Interior Height6'8"
Additional Specs
Dry Weight3,552
Hitch Weight370
Net Carrying Capacity1,238
Fresh Water51
Grey Tank37
Black Tank37
Furnace16,000 BTU
Water Heater6 Gal
LP Tank20 lbs
