Vista Cruiser Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Vista Cruiser Floor Plans

Model TypeGulf Stream Vista Cruiser 17RWD
17RWD
Gulf Stream Vista Cruiser 17SCD
17SCD
Gulf Stream Vista Cruiser 19TWD
19TWD

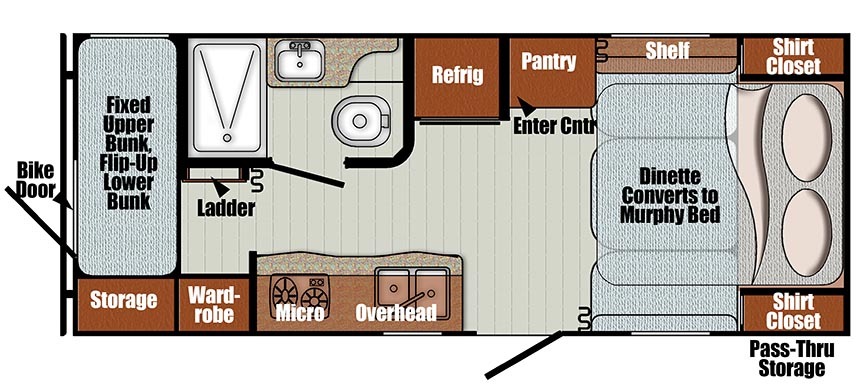

Gulf Stream Vista Cruiser 19BFD
19BFD
Gulf Stream Vista Cruiser 19CSK
19CSK
Key Specifications
Length20'0"20'0"23'2"23'1"23'2"
Width7'6"7'6"7'6"7'6"7'6"
Exterior Height10'2"10'2"10'2"10'2"10'2"
Interior Height83"83"83"83"83"
Additional Specs
Dry Weight2,5672,7803,0353,4103,059
Hitch Weight240300380480325
Net Carrying Capacity1,4131,5201,3451,550976
Fresh Water2727272727
Grey Tank3333333333
Black Tank3333333333
Furnace16,000 BTU16,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 202 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Vista Cruiser 19ERD
19ERD
Gulf Stream Vista Cruiser 19MBS
19MBS
Gulf Stream Vista Cruiser 19RBS
19RBS
Gulf Stream Vista Cruiser 23BHS
23BHS
Gulf Stream Vista Cruiser 23QBS
23QBS
Key Specifications
Length23'2"23'2"23'2"26'1"26'1"
Width7'6"7'6"7'6"7'6"7'6"
Exterior Height10'2"10'2"10'2"10'6"10'6"
Interior Height83"83"83"83"83"
Additional Specs
Dry Weight3,0903,1923,1614,2534,038
Hitch Weight370420380480440
Net Carrying Capacity1,2941,2281,2191,8272,002
Fresh Water2727272727
Grey Tank3333333333
Black Tank3333333333
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.

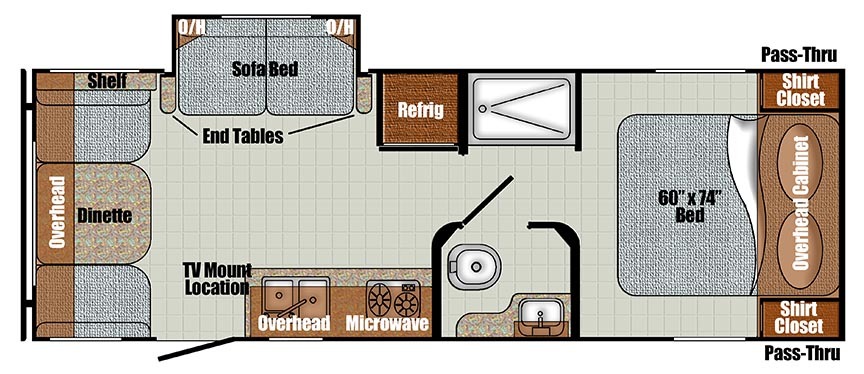

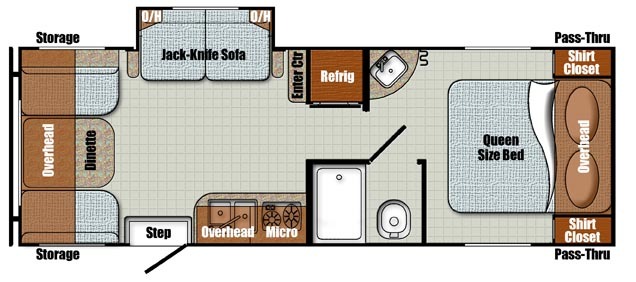

Model TypeGulf Stream Vista Cruiser 23RSS
23RSS
Gulf Stream Vista Cruiser 23TWS
23TWS
Gulf Stream Vista Cruiser 23MBS
23MBS
Gulf Stream Vista Cruiser 23FBS
23FBS
Key Specifications
Length26'1"26'1"26'1"26'1"
Width7'6"7'6"7'6"7'6"
Exterior Height10'6"10'6"10'6"10'6"
Interior Height83"83"83"83"
Additional Specs
Dry Weight3,9203,8354,2184,081
Hitch Weight420440600520
Net Carrying Capacity2,1402,2051,9822,039
Fresh Water27272727
Grey Tank33333333
Black Tank33333333
Furnace20,000 BTU20,000 BTU20,000 BTU20,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 202 x 20 lbs.2 x 20 lbs.
