Innsbruck Floor Plans

Show:
Filter by:

Travel Trailer Floor Plans

Model TypeGulf Stream Innsbruck 262RLS
262RLS

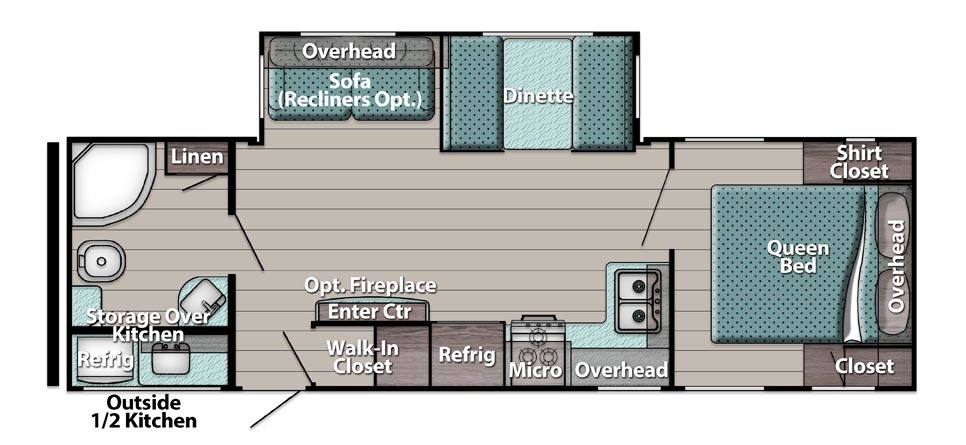

Gulf Stream Innsbruck 266RBS
266RBS

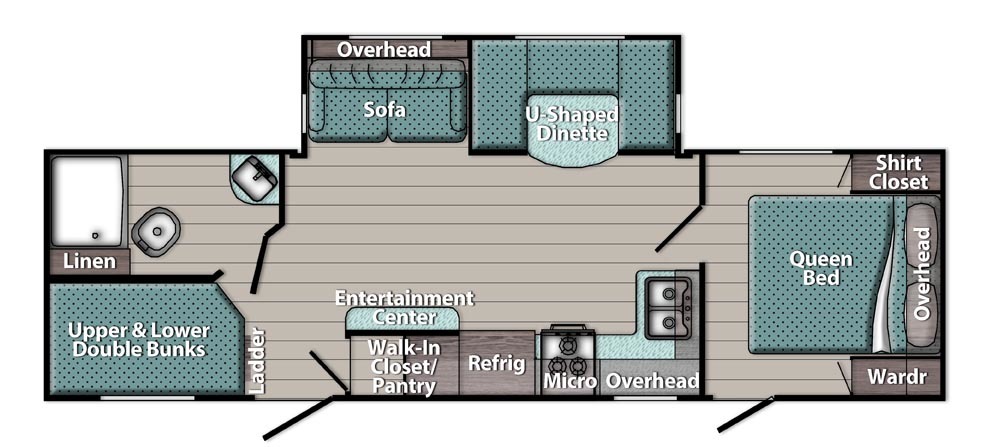

Gulf Stream Innsbruck 276BHS
276BHS
Gulf Stream Innsbruck 277DDS
277DDS
Gulf Stream Innsbruck 278DDS
278DDS
Key Specifications
Length31'3"30'3"32'3"31'9"31'9"
Width8'96"8'8'8'
Exterior Height10'9"11'3"10'9"10'9"10'9"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight6,8496,3706,4736,5226,344
Hitch Weight910710940890930
Net Carrying Capacity1,4213,8503,3273,1883,386
Fresh Water5129515151
Grey Tank3774747474
Black Tank3737373737
Furnace25,000 BTU30,000 BTU25.000 BTU25,000 BTU25,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Innsbruck 288ISL
288ISL

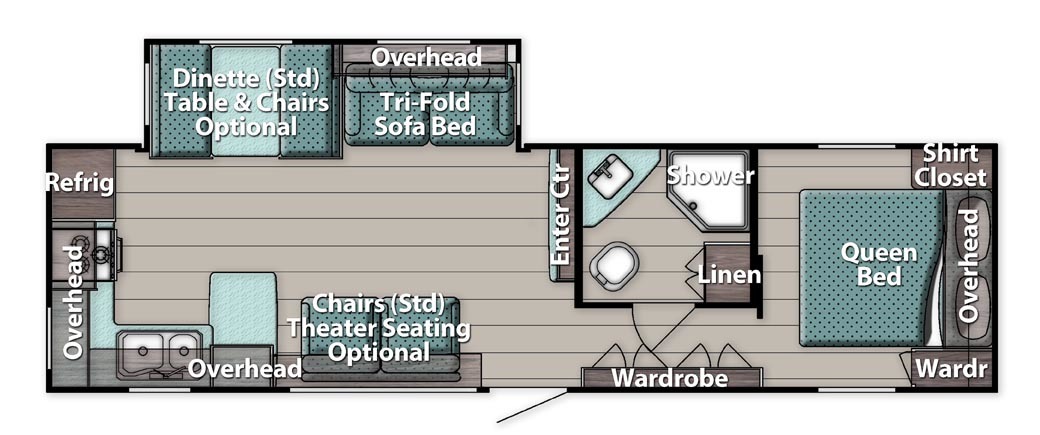

Gulf Stream Innsbruck 295SBW
295SBW

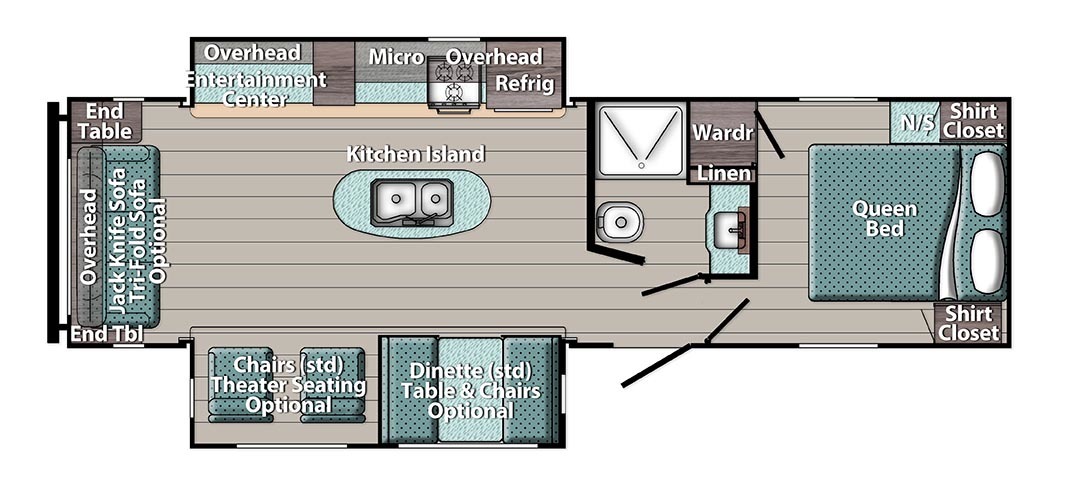

Gulf Stream Innsbruck 299RLI
299RLI
Gulf Stream Innsbruck 301TB
301TB
Gulf Stream Innsbruck 30FRK
30FRK
Key Specifications
Length33'0"34'6"33'7"34'1"35'8"
Width8'8'96"8'8'
Exterior Height10'9"10'9"11'3"10'9"10'9"
Interior Height80"80"80"80"80"
Additional Specs
Dry Weight6,6606,7787,3006,8457,898
Hitch Weight9101,0801,1308851,120
Net Carrying Capacity1,8203,0502,6302,8402,022
Fresh Water5151515151
Grey Tank7474373737
Black Tank3737373737
Furnace30,000 BTU30,000 BTU35,000 BTU30,000 BTU30,000 BTU
Water Heater6 Gal.6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs2 x 20 lbs.2 x 20 lbs.

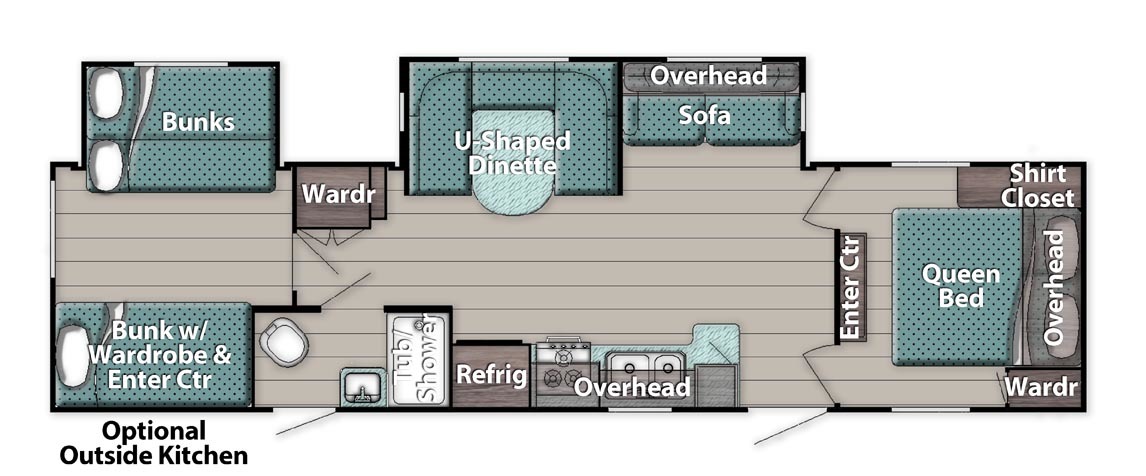

Model TypeGulf Stream Innsbruck 323TBR
323TBR
Key Specifications
Length36'7"
Width8'
Exterior Height10'9"
Interior Height80"
Additional Specs
Dry Weight7,506
Hitch Weight1,080
Net Carrying Capacity2,374
Fresh Water51
Grey Tank37
Black Tank37
Furnace30,000 BTU
Water Heater6 Gal
LP Tank2 x 20 lbs.

Lodge Series Floor Plans

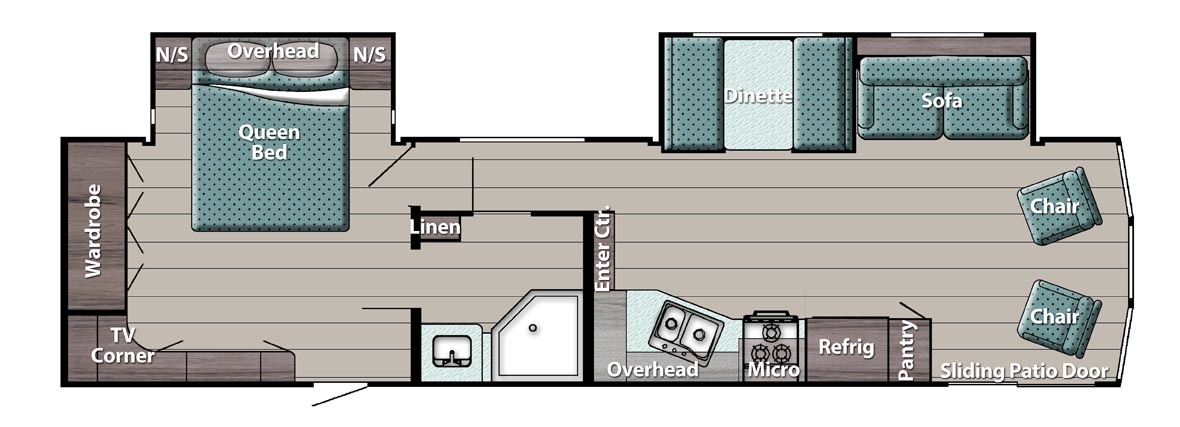

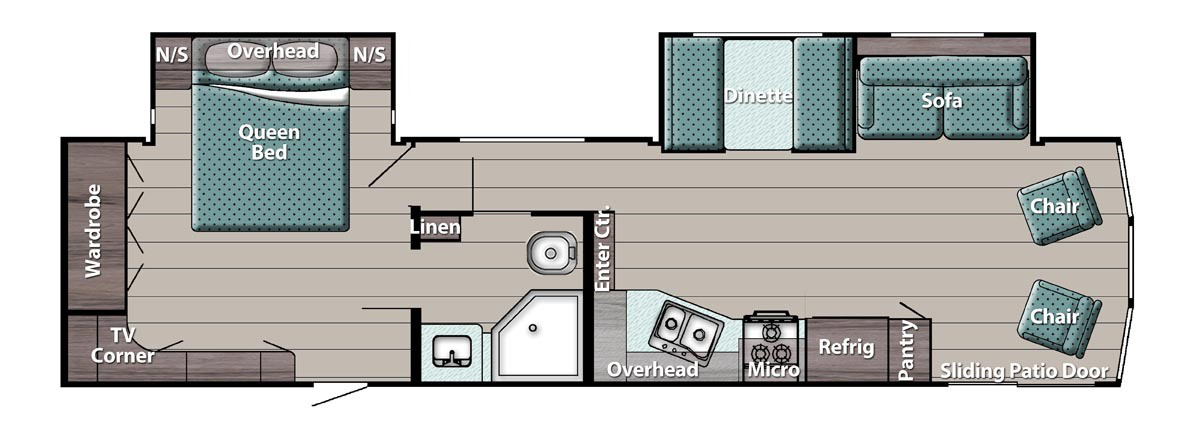

Model TypeGulf Stream Innsbruck 34FLS
34FLS
Gulf Stream Innsbruck 406FLR
406FLR
Gulf Stream Innsbruck 40DEN
40DEN
Gulf Stream Innsbruck 408TBS
408TBS
Key Specifications
Length38'0"40'5"40'3"41'3"
Width8'8'8'8'
Exterior Height10'9"11'11"11'11"11'11"
Interior Height80"80"80"80"
Additional Specs
Dry Weight7,9179,9879,7659,120
Hitch Weight1,3401,5821,6001,360
Net Carrying Capacity2,2237951,0351,440
Fresh WaterN/AN/AN/AN/A
Grey Tank37747474
Black Tank37373737
Furnace35,000 BTU35,000 BTU35,000 BTU35,000 BTU
Water Heater10 Gal10 Gal10 Gal10 Gal
LP Tank2 x 30 lbs2 x 30 lbs2 x 30 lbs2 x 20 lbs.

SE Series Floor Plans

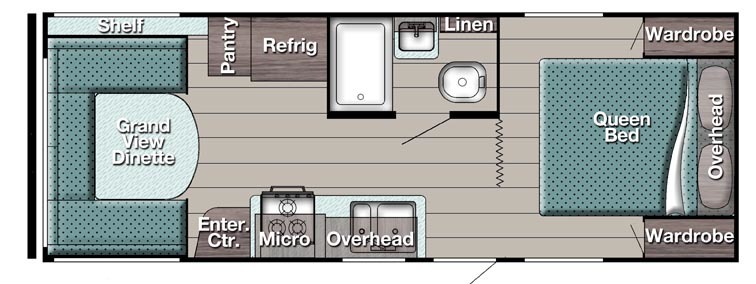

Model TypeGulf Stream Innsbruck 20QBG
20QBG
Gulf Stream Innsbruck 26BHG
26BHG
Gulf Stream Innsbruck 275FBG
275FBG

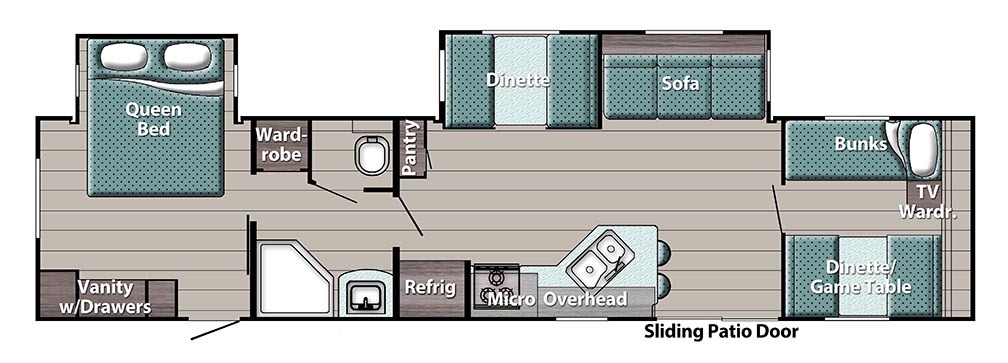

Gulf Stream Innsbruck 36FRSG
36FRSG
Key Specifications
Length25'6"29'10"30'4"39'7"
Width8'96"8'8'
Exterior Height10'9"11'3"10'9"10'9"
Interior Height80"80"80"80"
Additional Specs
Dry Weight4,1265,1204,7388,127
Hitch Weight6206206901,220
Net Carrying Capacity3,6942,8102,9521,953
Fresh Water515151N/A
Grey Tank37373737
Black Tank37373737
Furnace25,000 BTU25,000 BTU25,000 BTU35,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs2 x 20 lbs.2 x 20 lbs.
