Innsbruck Floor Plans

Show:
Specifications are approximate and subject to change.
Check the label in your unit for actual weights and capacities.
Filter by:

Supreme Series Floor Plans

Gulf Stream Innsbruck 266RBS
266RBS | Overall Weight: 6,290 lbs.

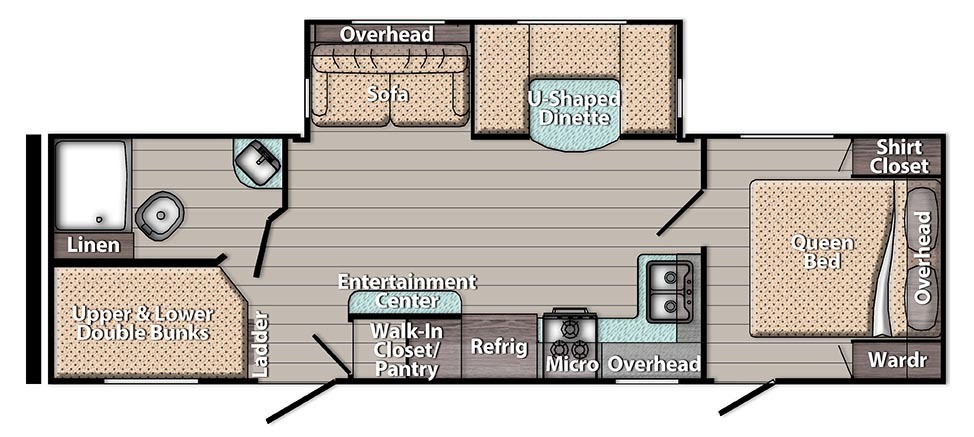

Gulf Stream Innsbruck 276BHS
276BHS | Overall Weight: 5,680 lbs.

Gulf Stream Innsbruck 285DBS
285DBS | Overall Weight: 7,350 lbs.

Gulf Stream Innsbruck 288ISL
288ISL | Overall Weight: 6,660 lbs.

Gulf Stream Innsbruck 295SBW
295SBW | Overall Weight: 6,000 lbs.

Gulf Stream Innsbruck 299RLI
299RLI | Overall Weight: 7,390 lbs.

Gulf Stream Innsbruck 303RLI
303RLI | Overall Weight: 9,190 lbs.

Gulf Stream Innsbruck 323TBR
323TBR | Overall Weight: 8,050 lbs.

Gulf Stream Innsbruck 36FRSG
36FRSG | Overall Weight: 8,300 lbs.

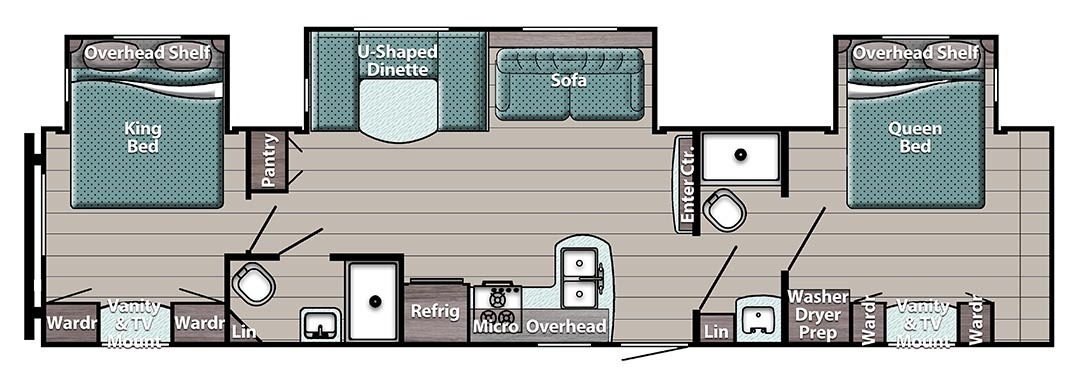

Gulf Stream Innsbruck 33DBDB
33DBDB | Overall Weight: 9,680 lbs.

Gulf Stream Innsbruck 39RESE
39RESE | Overall Weight: 8,180 lbs.

Lodge Series Floor Plans

Gulf Stream Innsbruck 34FLS
34FLS | Overall Weight: 7,917 lbs.

Gulf Stream Innsbruck 406FLR
406FLR | Overall Weight: 9,987 lbs.

Gulf Stream Innsbruck 40DEN
40DEN | Overall Weight: 9,765 lbs.

Gulf Stream Innsbruck 408TBS
408TBS | Overall Weight: 9,120 lbs.

Supreme Series Floor Plans

Model TypeGulf Stream Innsbruck 266RBS
266RBS		Gulf Stream Innsbruck 276BHS
276BHS		Gulf Stream Innsbruck 285DBS
285DBS		Gulf Stream Innsbruck 288ISL
288ISL		Gulf Stream Innsbruck 295SBW
295SBW
Key Specifications
Length30'5"32'2"36'11"33'0"34'5"
Width8'8'8'8'8'
Exterior Height11'3"11'3"11'4"10'9"11'3"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight6,2905,6807,3506,6606,000
Hitch Weight6507501,0109101,010
Net Carrying Capacity3,1603,8702,4601,8203,810
Fresh Water4242365142
Grey Tank7373737474
Black Tank3737723737
Furnace25,000 BTU25.000 BTU30,000 BTU30,000 BTU30,000 BTU
Water Heater6 Gal6 Gal6 Gal6 Gal.6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Innsbruck 299RLI
299RLI		Gulf Stream Innsbruck 303RLI
303RLI		Gulf Stream Innsbruck 323TBR
323TBR		Gulf Stream Innsbruck 36FRSG
36FRSG		Gulf Stream Innsbruck 33DBDB
33DBDB
Key Specifications
Length33'7"37'7"36'7"39'8"40'7"
Width8'8'8'8'8'
Exterior Height11'5"11'5"11'7"10'9"11'4"
Interior Height6'8"6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight7,3909,1908,0508,3009,680
Hitch Weight9401,5309801,0401,160
Net Carrying Capacity2,3501,5401,7301,5402,067
Fresh Water3042424242
Grey Tank7374373774
Black Tank3737373774
Furnace35,000 BTU35,00030,000 BTU35,000 BTU35,000 BTU
Water Heater6 GalTankless6 Gal6 Gal6 Gal
LP Tank2 x 20 lbs.2 x 20 lbs2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
Model TypeGulf Stream Innsbruck 39RESE
39RESE
Key Specifications
Length41'2"
Width8'
Exterior Height11'5"
Interior Height6'8"
Additional Specs
Dry Weight8,180
Hitch Weight1,170
Net Carrying Capacity3,390
Fresh Water42
Grey Tank73
Black Tank37
Furnace35,000
Water HeaterTankless
LP Tank2 x 20 lbs

Lodge Series Floor Plans

Model TypeGulf Stream Innsbruck 34FLS
34FLS		Gulf Stream Innsbruck 406FLR
406FLR		Gulf Stream Innsbruck 40DEN
40DEN		Gulf Stream Innsbruck 408TBS
408TBS
Key Specifications
Length38'0"40'5"40'3"41'3"
Width8'8'8'8'
Exterior Height10'9"11'11"11'11"11'11"
Interior Height6'8"6'8"6'8"6'8"
Additional Specs
Dry Weight7,9179,9879,7659,120
Hitch Weight1,3401,5821,6001,360
Net Carrying Capacity2,2237951,0351,440
Fresh WaterN/AN/AN/AN/A
Grey Tank37747474
Black Tank37373737
Furnace35,000 BTU35,000 BTU35,000 BTU35,000 BTU
Water Heater10 Gal10 Gal10 Gal10 Gal
LP Tank2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.2 x 20 lbs.
